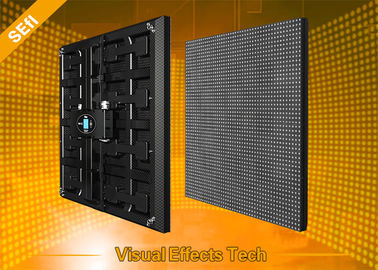

Large High Resolution Concert Stage Background Led Display Screen

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	10sqm
Price:	US ***/sqm
Packaging Details:	Flight case/Wooden case
Delivery Time:	35-40 days
Payment Terms:	FOB,T/T(50% in advance, 50% before delivery)
Supply Ability:	1000sqm per month

Contact Now

Detailed Product Description

High Light:

high definition led display

Glux LED Display IDsn series	IDsn2	IDsn3	IDsn5	IDsn7
Pixel Pitch (mm)	2.6	3.9	5.2	7.8
Pixel Density (dots/m2)	147456	65536	36864	16384
Brightness Max (cd/m2)	≥1000	≥1000	≥1000	≥1000
Grey Scale (bit)	16bit	16bit	16bit	16bit
Refresh Rate (Hz)	≥3000	≥3000	≥3000	≥3000
Frame Rate (Hz)	50/60	50/60	50/60	50/60
Contrast	≥1000:1	≥1000:1	≥1000:1	≥1000:1
Color Temperature (after calibration) (K)	6500	6500	6500	6500
Horizontal / Vertical Viewing Angle (°)	H160/V160	H160/V160	H160/V160	H160/V160
Module Size (W x H x D) (mm)	500x500x53	500x500x53	500x500x53	500x500x53
Weight (kg/panel)	3.9/4.3	3.9/4.3	3.9/4.3	3.9/4.3
Protection	IP40	IP40	IP40	IP40
Power Supply	Single power(Dual power)	Single power(Dual power)	Single power(Dual power)	Single power(Dual power)
Working Voltage(V)	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz
Max Power Consumption (W/pcs)	≤150	≤150	≤150	≤150
Working Temperature	-20Co/40Co	-20Co/40Co	-20Co/40Co	-20Co/40Co
Cabinet Material	Carbon fiber	Carbon fiber	Carbon fiber	Carbon fiber
Max Hanging (vertical)	≥1000kg	≥1000kg	≥1000kg	≥1000kg
Signal Cable	CAT5-1000M	CAT5-1000M	CAT5-1000M	CAT5-1000M
Video Signal Input Interface	DVI/HDMI/HDSDI	DVI/HDMI/HDSDI	DVI/HDMI/HDSDI	DVI/HDMI/HDSDI
Life Time (h)	≥10000	≥10000	≥10000	≥10000
