Pixel 6mm Advertising LED Display Aluminium alloy LED Dance Floor
Description:

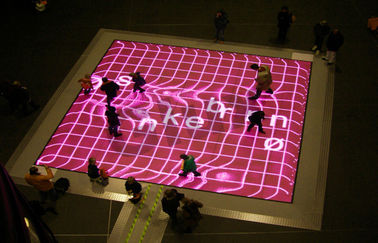

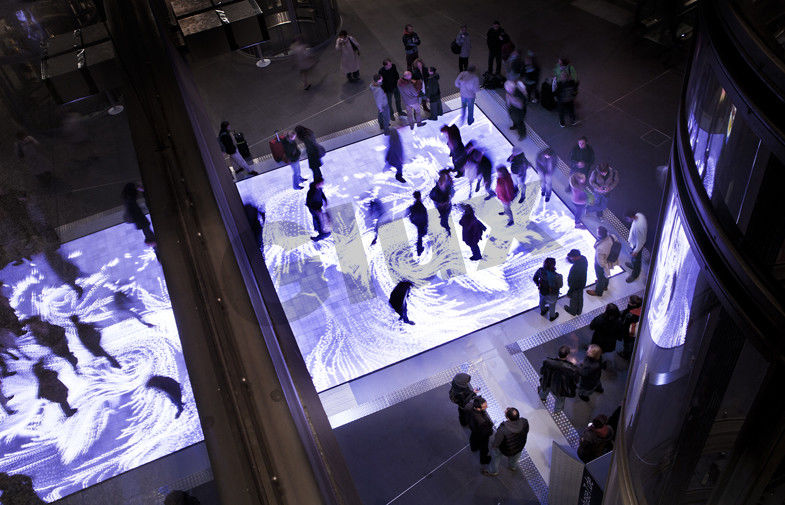

A creative & state of the art LED ground plate you can walk on
1. Press to Impress: Ideal for both indoor and outdoor applications of LED stage floors
2. Die-cast aluminum modules canseamlesslycreate even largest floor configurations
3. DigiFloor modules are able to handle weights of up to a small car
4. Specialized filtering processes eliminate moirpatterns (image artifacts)
5. 16bit grey scale processing & pixel correction techniques ensure image quality
Applicantion:
Video, graphics, animation, stage dance floor, disco, club, bar, entertainment, events, exhibitions, shows, concerts,etc
Specifications:
| Item No. | SEfl6 |
| Pixel Pitch(mm) | 6.25 |
| Pixel Density(dots/m2) | 25600 |
| Brightness(cd/m2) | 5000 |
| Color Temperature(after calibration)K | 6500 |
| Module Size(W*H*D)(mm) | 500*500*60 |
| Weight(kg/Panel) | 8 |
| Weight(kg/m2) | 32 |
| LED Type | SMD 3 in1 |
| LED Chip | Epistar |
| Horizontal/Vertical Viewing Angle(º) | H140º/V140º |
| Recommended Viewing Distance(m) | ≥6 |
| Contrast | 2000:1 |
| Refresh Rate(Hz) | 1800 |
| Grey Scale(bit) | R/G/B 12/16 |
| Frame Rate(Hz) | 50/60 |
| Life Time(H) | ≥50000 |
| Protection | IP43/IP65 |
| Power Supply | Dual Power Supply |
| Working Voltage(V) | AC 110-240 |
| Max Power Consumption(W/M2) | 800 |
| Avr Power Consumption (W/M2) | 260 |
| Working Temperature | -25-60℃ |
| Working Humidity | 10%-95% |
| Drive Mode | 1/5 |
| Cabinet Material | Aluminium alloy |
| Control Input | DVI/HDMI/HDSDI |
| Certification | CE/FCC/TUV |
| Max Hanging(Vertical) | ≥10 |
Feature Advantage & Competitive Advantage:
Die-cast aluminum modules
Good Applicaton feedback
LED dance floor, LED stage floor
