high brightness P10 Outdoor Advertising LED Display wall mounted installation

high brightness P10 Outdoor Advertising LED Display wall mounted installation

high brightness P10 Outdoor Advertising LED Display  wall mounted installation
high brightness P10 Outdoor Advertising LED Display  wall mounted installation high brightness P10 Outdoor Advertising LED Display  wall mounted installation

Large Image :  high brightness P10 Outdoor Advertising LED Display wall mounted installation

Product Details:
Place of Origin: China
Brand Name: BAKO
Certification: CE/ROHS/FCC/SGS
Model Number: BK-P10
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden box or flight case
Delivery Time: 20 days after advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 sqm per month
Detailed Product Description
Product Name: High Brightness P10 Outdoor Advertising LED Display Wall Mounted Installation Module Size: 160*160mm
Cabinet Size: 960*960 Mm Standard: CE/ROHS/FCC/SGS
Application: Outdoor Advertising Brightness: 7500 Nits
Cabinet Resolution: 96*96 Cabinet Type: Iron
High Light:

led screen advertising

,

led advertising billboards



high brightness P10 Outdoor Advertising LED Display  wall mounted installation





Specifications:



Unit module

Pixel pitch

10mm

Pixel density(dots/sqm)

10000/sqm

LED encapsulation

DIP346

Driving method

1/4

Module size(mm)

160*160mm

Resolution of module( dots)

16*16

Major technical parameters

Cabinet size

960*960mm

Brightness

7500cd/ ㎡

Refresh rate

>2000HZ

Color temperature

6500K

View angle(H/V)

160°/140°

Grey scale

16bit

Brightness adjustment

256 grade/ Manually/ Automatically

Working/ storage temperature

-20℃~50℃/ -30℃~60℃

Working/ storage humidity

10%~90% RH

Working voltage

AC220/110V 50Hz

Protect degree

IP65/IP54

MTBF

>5000h

Life span

100000h

Input Signal

AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP

Operation system

Windows 7/XP

Control distance

cat-5 data cable:<100m, optical fiber<15km







Quick details:





Pitch:P10 DIP 346

module resolution: 16*16

module size: 160*160mm

cabinet size: 960*960mm

brightness; 7500 nits





Description:





1. mature technology: For DIP outdoor LED display,  since it is old item and BAKO already has 10 years' experience in it, so the technology is mature and quality can be made sure of.



2. Good waterproof protection: DIP lamp has good water proof. Front is IP65 and back is IP54. There is totally no problem for outdoor application.



3. Remote control: we can realize remote control such as 3G.



4. Anti-low temperature: for very cold areas such as Russian market, we should pay special attention to the cold temperature. So we will use anti-low temperature power suppliers and special heat system to warm the display.



5. Good heat output system for high temperature: For hot ares, heat output system is specially important. Or else, the whole display will become hot and there will be dangerous. So we help clients to reduce current and also make add fans for screen.



6. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.



7. High brightness: For outdoor application, brightness is important, especially if the LED display faces the sun directly. BAKO’s outdoor display brightness can be above 7500 nits, completely ensure the requirement for outdoor application.



8. Adjustable brightness: In the daytime, brightness should be high. But in the evening, it should be reduced for traffic safety. BAKO’s LED display can make the brightness adjusted automatically. Also, this method can help to save much energy.





Applications:



Outdoor advertising

shopping mall

building

hotel





Installation:



1) wall mounted

2) on the top of building

3) pillar support

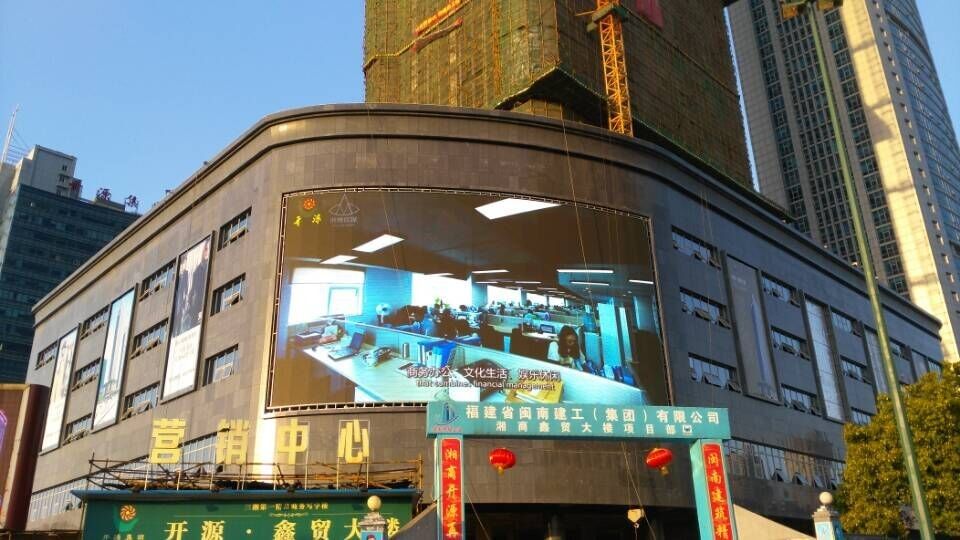

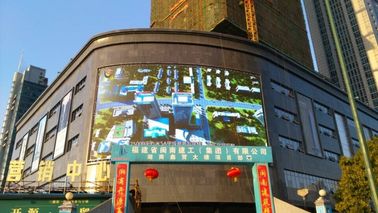

high brightness P10 Outdoor Advertising LED Display  wall mounted installation 0                 high brightness P10 Outdoor Advertising LED Display  wall mounted installation 1high brightness P10 Outdoor Advertising LED Display  wall mounted installation 2
