Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P3.9 / P7.8mm | LED Lamp: | 3in1 SMD |
|---|---|---|---|
| Brightness: | >1500 Nits | Refresh Rate: | >2000 Hz |
| Material: | Plastic | Curve/Circle: | Available |
| Panel Size: | 1000*4000*20mm (W*H*D) / Customized | Installation: | Hanging |
| High Light: | indoor LED display signs,indoor LED screen |
||
HD SMD P3.9 P7.8 Concert LED Display Flexible Ultra Thin Fast Installation LED Module
Main Feature:
Fast : Fast and easy to install and dismantle with tool-free and modular design
Irregular : Foldable and ultra-slim structure could create many irregular shape such as 360°circle,
wave, column, stair etc.
Foldable : 250*250mm module with ultra-thin thickness less than 20mm make the screen
foldable , greatly save much transportation cost and space for installation and storage.
Ultra-thin : Less than 20mm thickness make screen extremely slim, which requires very small
space for installation and storage.
Transparent : Transparent design for some pitch displays create fantastic see-through effect on stage.
Application:

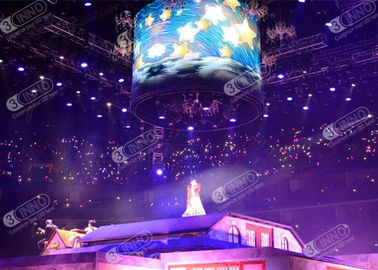

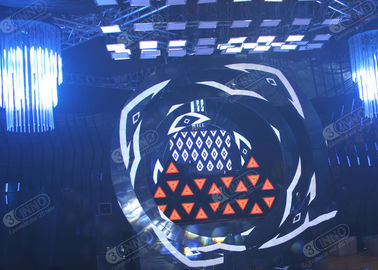

Perfectly used for outdoor/indoor stage, concerts, clubs, cooperating events, TV studio & Films,
celebration, live show, etc.
Specification:
| Flexible Concert LED Display | Unit | FL-3 | FL-7 | ||
|---|---|---|---|---|---|
| Pixel pitch | mm | 3.9 | 7.8 | ||
| Pixel configuration | ﹣ | 3-in-1 SMD 2020 | SMD 3528 / SMD 3535 | ||
| Resolution per module | pixels | 64×64 | 32x32 | ||
| Brightness | cd/㎡ | 2000 | 1500 / 6000 | ||
| Power consumption(max/ave) | W/sqm | 900/300 | 200/80; 600/300 | ||
| IP rating | ﹣ | IP43/IP54 | IP43/IP54/IP65 | ||
| Viewing angle(H/V) | degree | 120/120 | |||
| Color temperature | k | 8000 | |||
| Brightness/color consistency | ﹣ | <97% / Within±0.003 Cx,Cy | |||
| Gray scale | ﹣ | 4096 | |||
| Refresh rate | Hz | ≥2000 | |||
| Processing | bit/color | 12 | |||
| Colors | billion | 68 | |||
| Operating power | VAC,Hz | 100-240,50/60 | |||
| Working temperature | ℃ | ﹣20 ~ 50 | |||
| Working humidity | RH | 10%~90% | |||
| Control System | ﹣ | Linsn / Nova | |||
| Source compatibility with VP | ﹣ | CVBS,YUV, DVI,VGA,S-Video,HDMI,SDI,HDSDI,etc. | |||
| Life time | Hrs | 85,000 | |||
| Size(W×H×D) | mm/module | 250×250×19.6 (main part thickness 9.7mm) | |||
| Screen unit size(W×H) | mm | 1000x4000 / customized | |||
| Frame material | Plastic | ||||
| Weight | kg/module | 1 | |||
| Weight | lbs | 2 | |||
| Installation | ﹣ | Hanging | |||
| Curve | ﹣ | Available, no limit | |||
| Serviceability | ﹣ | Rear | |||
| Package | Flight case | ||||
