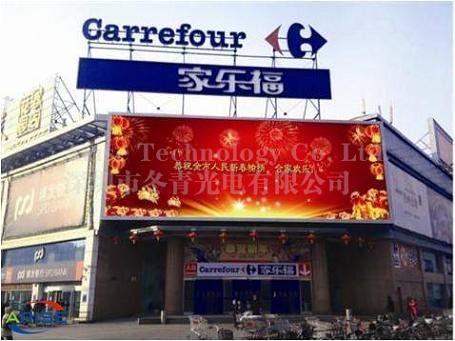

DIP346 Outdoor led display P12 with high brightness
FOB Price:US $600 - 1,200 / Square Meter
Min.Order Quantity:1 Square Meter/Square Meters
Supply Ability:5,000 Square Meter/Square Meters per Month
Port:Shenzhen
Payment Terms: T/T
Quick Details
Place of Origin: | Guangdong China (Mainland) | Brand Name: | ARISE | Model Number: | FO-12D |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 12mm | Screen Dimension: | customized | material:: | LED lamp |
application:: | advertisement,public information and other display | brightness:: | over 6000 nits | presentation content:: | video&audio,
graphic and text |
lifespan:: | 100,000 hours | waterproof level: | IP 65 | | |
Packaging & Delivery
Packaging Detail: wooden box or flight case,we do it according to your requests
Delivery Detail: 25 days generally and that depends on your orders and requests
Specifications
1)led display manufacturer
2)CE,ROHS,CCC,FCC,ISO9001
3)High brightness and definition
4)Top-notch quality, long lifespan
Arise：
Arise Technology Co., Ltd Supply LED display all over the world with good quality and best prices.
Including: P1.8 P2.5 P3 P4 P5 P6 P7.62 P8 P8.9 P10 P12 P16 P20 P25 P31.25 P50 full-color LED display screen, large LED advertising screen
Arise Technology Co., Ltd LED display products:
Outdoor Fix Installation LED Display ：P6、P8、P10(DIP)、P10(SMD)、P12、P16、P20、P25
Indoor Fix Installation LED Display ：P1.8、P2.5、P3、P4、P5、P6、P7.62、P8、P10
Outdoor Rental LED Display ：P6、P6.94、P8、P8.9、P10
Indoor Rental LED Display ：P2.5、P3、P4、P5、P6、P7.62
Perimeter LED Display ：P12、P16
ARISE
Arise Technology Co., Ltd is a high-tech company dedicated in providing professional LED displays and comprehensive optoelectronic solutions.
Arise Technology owns strong execution, brilliant development strategies and programs, sustainable creation based on market demand. We spare no effort to provide customers with market-oriented innovative products with good reliability, suitable solutions and all-round service. Arise’s main products includes indoor and outdoor LED displays for fix installation, indoor and outdoor LED displays for rental business, stadium perimeter LED displays, and other special LED displays in accordance with customized requirements; LED display control system, related optoelectronic equipment, LED devices and components. We are ready to providing LED display solutions for oversea and domestic advertisement media, building advertising and lighting, municipal administration, hospital, hotel, bank, traffic, sports, entertainment, show, exhibition, etc.
We Arise Technology regards integrity in company staff, customers and suppliers as the enterprise foundations, market demands as the guide. We guarantee quality with profession and dedication and use enterprise culture to fill our brand. We keep striving, forging ahead, creating to provide customer with strong and unremitting support and backup.
Some exclusive features of our LED display:
1.Tailor make all kinds of led display ,led screen, led video billboard,
digital signage and led lighting for different application.
2. High brightness and definition, energy-saving, environment friendly,
3. No emissions, radiations, noise or chemical effluent.
3. Full complete technical support and long time after-sales service.
4. The most attractive and multi-use presentation format.
5. Easy operation and control, simple installation and maintenance
World-class image processing and LED innovation
Integrated visualization features, set DB-320 years ahead of the competition. No other outdoor LED screen comes close.
System Color Signature
Built-in intelligence monitors LED color signature, temperature thresholds, and overall run-time.
Proprietary image processing produces sharp, brilliant images unmatched by industry competition.
Component selection and layout minimizes heat distribution and operating temperature.
Integrated color, contrast and brightness
16-bit processing generates 281 trillion colors for true color reproduction, year after year.
4,000:1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away.
7,000NIT guarantees the screen stays brighter, providing 100,000 hours of continuous use.
Smart shades
Modular shades protect LEDs from harm and are field-replaceable when damaged or adjusting black levels.
Light traps deflect external light, minimizing the "washout effect."
Unique geometry drains rainwater, preventing visual obstructions.
Reliability and service
Redundant power system maintains power in the event of tile failure.
Intelligent diagnostic features allowing remote monitoring via the web.
Front-accessible and hot swappable tiles guarantee quick replacement and virtually zero downtime.
Service beyond the warranty
24/7 technical support
4-hour on-site response
Pro-active service monitoring
Annual preventive maintenance
Repair, replace or exchange
Worldwide partners
Our Services
1. Pre-sales service:
a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the
requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of
part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and
contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual. The training include system use, system maintenance and equipment
protection.
2. After-sales service
a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance
period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
No. | Item | Parameter |
1. | Pixel Pitch | 12mm |
2. | Pixel Density | 6944dot/sqm |
3. | Pixel Configuration | 1R1G1B DIP346 |
4. | Module Size | 192*192mm |
5. | Module Resolution | 16*16 dots |
6. | Cabinet Resolution | 80*80dots,96X80dots |
7. | Cabinet Size (mm) | 960*960mm, 1152*960mm |
8. | Weight | Aluminum: about 45-50kg/sq.m; SPCC: about 55-60kg/sq.m |
9. | Cabinet Material | Aluminum or SPCC(Steel) |
10. | Viewing Distance | ≥12m |
11. | Viewing Angle (Horizontal Axis) | 120° |
12. | Viewing Angle (Vertical Axis) | 80° |
13. | Refresh Rate | >1000Hz |
14. | Grey Scale | ≥14bits |
15. | Frame Frequency | ≥60Hz |
16. | Brightness | above 6000 nits |
17. | Max. Power Consumption | ≤780w/sq.m |
18. | Average Power Consumption | 360w/sq.m |
19. | Driving Mode | 1/4 Scan Constant Current |
20. | Driving IC | Brand MBI/JXI/TLC etc. |
21. | Power Supply | Meanwell, E-energy, Greatwall etc. 5V/40A |
22. | Input Voltage | AC110V/220V± 10%, 50/60Hz |
23. | Control System | Nova/LINSN/Mooncell etc. |
24. | Control Distance | Network Cable≤100m, Multimode optical fiber≤500m, Single mode optical fiber≤20 kilometer |
25. | Defects Rate | <0.0001 |
26. | MTBF | ≥10000Hrs |
27. | LED Lifespan | ≥10,0000 h |
28. | Operating System | Windows98/me/2000/NT/XP |
29. | IP Grade | Front IP67(65)/ Reer IP54 |
30. | Input Signal | DVI( if with Video Processor, more input signal) |
31. | Signal Interface | DVI with USB |
32. | Working environment | Celsius Degree:–20°C—÷50°C; humidity:10%—90%RH |
