Product Details:
Payment & Shipping Terms:
|
| Type: | P8 | LED Encapsulation: | SMD3535 |
|---|---|---|---|
| Pixel: | 32 × 16 | Size: | 256 × 128 |
| Drive Mode: | 1/4 Scan | Weight: | 0.35 Kg/pc |
| Drive Voltage: | 5 V | Max. Current: | 5.8 Amp |

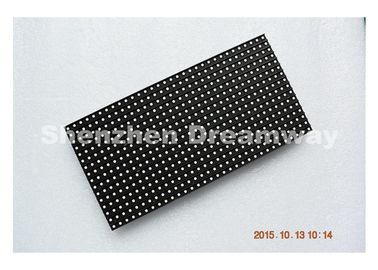

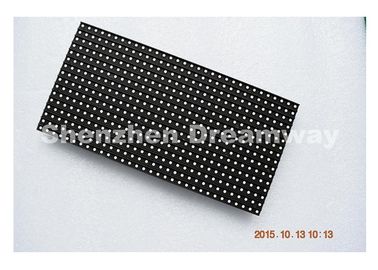

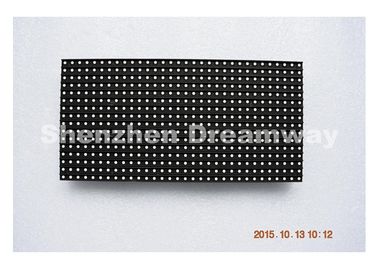

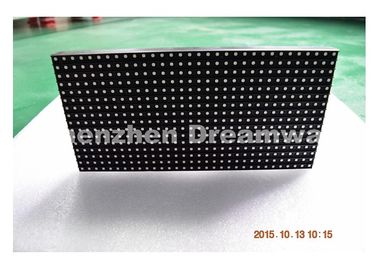

RGB PH 8 SMD Led Panel Module Full Color 1/4 Scan 256 × 128 mm
Quick Detail:
1. 32 × 16 dots per module;
2. 256 × 128 mm module size;
3. 1/4 scan;
4. About 5.8 Amp max. current;
5. 0.35 kg/pc;
6. SMD3535 LED type.
Detail Description:
This is 1/4 scan constant current, about 6500 nits/sq.m;
There are 12 pcs 5020 driving ICs in total;
Big view angle, 140° horizontal, 70° vertical.
Specifications:
|
Type |
PH 8 |
|
LED Type |
SMD3535 |
|
LED Composition |
1R 1G 1B |
|
LED Module Pixel |
W 32 × H 16 |
|
LED Module Size |
W 256 × H 128 mm |
|
Drive IC |
5020 |
|
Driving Mode |
1/4 scan constant voltage |
|
Brightness |
6500 nits/sq.m |
|
Drive Voltage |
5V |
|
Package |
Carton Case |
SMD3535 P8 Outdoor LED Module, 8 mm Outdoor LED Screen Module, Outdoor LED Video Module
