Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P40mm | LED Lamp: | SMD 3-in-1 3535 |
|---|---|---|---|
| Viewing Angle: | H: 120°; V:120° | Transparency: | >80% |
| Mateiral: | Plastic | Dot Color: | Milky / Transparent |
| IP Grade: | IP65 | Connection: | Magnets Buckles |
| High Light: | flexible led display screen,sport LED display |
||

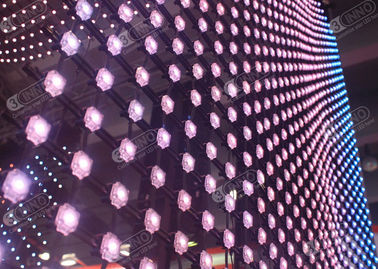

P40 Transparent Creative LED Display Lightweight Soft Flexible Led Stage Sign
Main Feature:
Lightweight, Fast assembly, Small space, Transparent
Steel wire rope with strong loading capability and high flexibility
Many shapes could be made such as square, rhombus, double-sided, ball, column, etc.
Power backup ensures no influence on screens when power failure
Support LED String’s fault diagnosis, system automatically send fault info to client
Magnetic buckles make connection fast, perfectly for rental application
IP65/IP66, suitable for outdoor application besides indoor usage
Multiple installation way like hanged up, fixed on wall,etc.
Application:

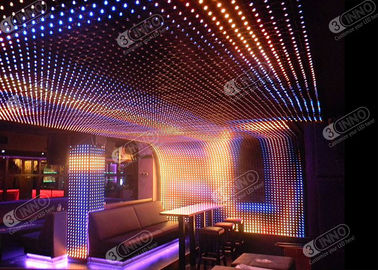

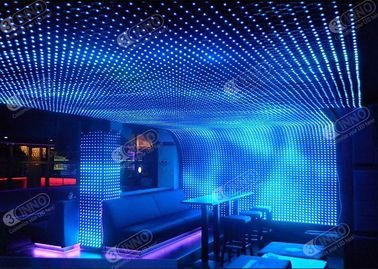

Flexible screen perfectly used for rental, stage, events, shows, concerts, festival celebration, etc.
Specification:
| Soft Creative LED Display | Unit | S1-40 | S2-40 | ||
|---|---|---|---|---|---|
| Dot size(W×H×D) | mm/dot | 18x18x10.5/18x18x13.5mm | 30x26x16mm | ||
| Dot mask shape | ﹣ | Flat / Domed | Flat | ||
| Dot weight | g/dot | 6 | 30 | ||
| LED Quantity | ﹣ | 1 | 1 / 2 / 3 / 4 / 8 | ||
| Power consumption(max/ave) | W/tile | 280 / 140 | >280 / >140 | ||
| Brightness | cd/㎡ | 1500 | >1500 | ||
| Pixel pitch | mm | 40 | |||
| Pixel density | pixels/sqm | 625 | |||
| LED type | ﹣ | RGB 3-in-1 SMD 3535 | |||
| Viewing angle(H/V) | degree | 120° H / 120° V | |||
| Processing | bit/color | 8 / 12 | |||
| Colors | ﹣ | 16.7 million / 68.7 billion | |||
| Refresh rate | Hz | >1000 | |||
| Dot mask color | ﹣ | Milky / Transparent | |||
| Dot base color | ﹣ | White / Black | |||
| Cable color | ﹣ | White / Black / customzied | |||
| Screen panel connection | ﹣ | Magnets buckles | |||
| Working power | VAC,Hz | AC110/220V, 50/60 Hz | |||
| Working temperature | ℃ | minus 20 ~ 45 | |||
| Working humidity | RH | 10%~90% | |||
| IP rating | ﹣ | LED dots: IP65; Control box: IP54 | |||
| Lifetime | hrs | 80,000 | |||
| Control System | ﹣ | Synchronous / Asynchronous | |||
| Certifications | ﹣ | CE, Rohs | |||
Our service :
1).Price : We provide high cost-effective price.
2).Automatically : Most procedures including selecting LED lamps,PCB soldering, DIP, SMD,
glue filling, module aging ,etc.are operated by automatic machines
3).Quality : From material selection to production, and from sample test to screen aging, nearly
all steps are controlled under strict regulations, which is the guarantee of the high reliability.
Especially we have strictly 72 hours screen aging test to ensure the stability of combination of
all electronic components.
4).Service : Warranty is up to 2 years, Service time is 24 hoursx7 days.
