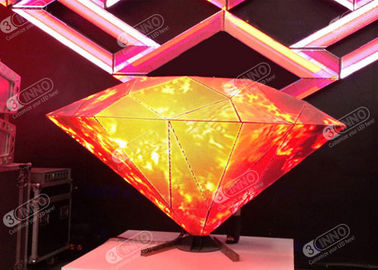

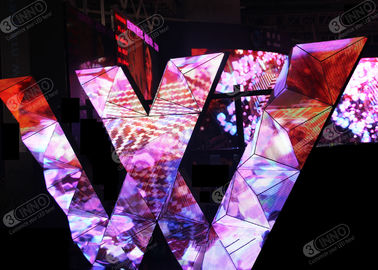

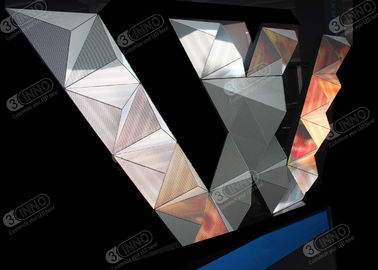

P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond

P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond

P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond
P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond

Large Image :  P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond

Product Details:
Place of Origin: China
Brand Name: 3Cinno
Certification: CE/ROHS/FCC/SGS
Model Number: IR-i5
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 15~25 working days after received your payment
Payment Terms: T/T
Supply Ability: 2,000square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: P5 Mm LED Lamp: SMD 3-in-1
Brightness: 1500 Nits Refresh Rate: >1000 Hz
Frame Material: Steel / Aluminum Shape: Pyramid / Diamond / Polygon / Customized
Software: Nova / Resolume Arena Installation: Fixed / Standing
Highlight:

sport LED display

P5 Creative LED Display Concert / Stage LED Screen Polygon / Pyramid / Diamond Irregular Shape



Main Feature:



Fantastic :  Perfect combination of LED display technology and creative animation



Creative:  Any irregular shape such as pyramid,polygon,diamond,crystal,etc. Could be created

beyond your mind.



Easy :   Easy handing and maintenance with universal system and components.



Customized :  Any shape with different type modules suitable for your stage could be customized.





Application:



Club, Stage, Events, Show, Theater,Entertainments, etc.





Specification:



Irregular Creative LED Display  Unit IR-i5
Pixel pitch mm 5
Pixel density pixels/㎡ 40,000
Pixel configuration ﹣ 3-in-1 SMD
Lamp viewing angle(H/V) degree 140/140
Brightness cd/㎡ >1500
Refresh rate Hz >1200
Module shape ﹣ Triangle
Driver IC ﹣ MBI
Power supply ﹣ Meanwell / G-energy / Other
Processing bit/color 14
Colors trillion 4.39
Operating power VAC,Hz 110-240,50/60
Power consumption(max/ave) W 1500/500
Operating temperature ℃ ﹣20 ~50
Operating humidity RH 10%~90%
Cabinet/Frame material ﹣ Steel / Aluminum
Shape ﹣ Pyramid / Diamond / Polygon / customized
Size(W×H×D)  mm 1815*1108*1121 / Any customized size
Weight kg/㎡ 30~60
Weight lbs 66~132
Serviceability ﹣ Front / Rear
Installation ﹣ Standing
IP rating ﹣ IP54 Back, IP43 Front
Control system / software ﹣ Nova / Resolume Arena
Display content ﹣ Pictures, Videos , Animation ,etc.
Package   Wooden box





After-sale service:



1.Free technician training.

2.Products usage tracking.

3.Customer satisfaction investigation.

4. Complaint response 24hrs service, maintenance solution 48 hours service,

5. Repair service;

6. On-site service for important projects, such as live shows, celebrations, etc.
