Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P10 Mm | LED Lamp: | SMD 3-in-1 3528 |
|---|---|---|---|
| Refresh Rate: | >2000 Hz | Brightness: | > 1000 Nits |
| Module Size: | 320*160mm (W*H) | Module Resolution: | 32 * 16 Pixels (W*H) |
| Characteristic: | Soft | Screen Size: | Customized |
| High Light: | sport LED display,Exterior LED display |
||
High Refresh Rate Creative Irregular P10mm LED Display IP64 SMD Fixed Soft Module
Main Feature:

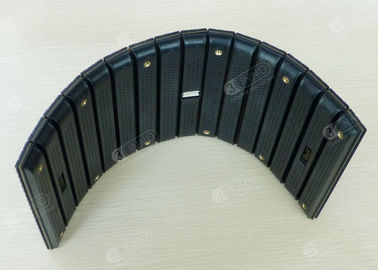

Soft and flexible enough to bend any shape as you want.
Irregular screens like ball, column,etc. is easily made by complete soft module.
360 degree viewing angle screen easily made, attractive to the audience.
Reliable quality achieved by high quality components, and high standard quality control.
Easy handing and maintenance with universal control system and accessories.
Perfect for rental and stage use also indoor advertising to get shocking effect.
Independent power & control box
Pixel pitch P6mm, P8mm, P10mm can be optional
Application:
Perfect creative screen often used in shopping mall, restaurants, hotel,
convention center, concerts, theaters, etc. to attract audence.
Specification:
| Soft Creative LED Module | Unit | SM-i10 | |||
|---|---|---|---|---|---|
| Pixel pitch | mm | 10 | |||
| Pixel density | pixels/㎡ | 10,000 | |||
| Pixel configuration | ﹣ | 3-in-1 SMD 3528 | |||
| Brightness | cd/㎡ | >1000 | |||
| Refresh rate | Hz | >2000 | |||
| Lamp viewing angle(H/V) | degree | 140/140 | |||
| Color temperature | K | 5000~9500 | |||
| Processing | bit/color | 14 | |||
| Colors | trillion | 4.39 | |||
| Module size(W×H) | mm | 320*160 | |||
| Module resolution(W×H) | pixels | 32*16 | |||
| Module working voltage | V | DC 5V | |||
| Driver IC | ﹣ | MBI | |||
| Power supply input | VAC,Hz | 110/220,50/60 | |||
| Power consumption(max/ave) | W | 300/150 | |||
| Control system | ﹣ | Nova / Linsn | |||
| Display content | ﹣ | Pictures, Videos , Animation ,etc. | |||
| Service access | ﹣ | Rear | |||
| Installation | ﹣ | Fixed | |||
| MTBF | Hrs | 10,000 | |||
| Life span | Hrs | 100,000 | |||
| Working temperature | ℃ | ﹣20 ~50 | |||
| Storage temperature | ℃ | ﹣35 ~85 | |||
| Working humidity | RH | 10%~90% | |||
| IP rating | ﹣ | IP64 | |||
| Package | Wooden box | ||||

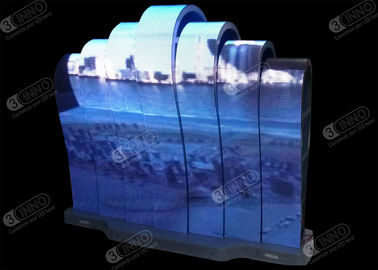

Case photos:
