Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | P8.9 / P10.41 / P12.5 / 15.62 Mm | LED Lamp: | 3in1 SMD 3535 |
|---|---|---|---|
| Brightness: | >5000 CD/sq.m | Refresh Rate: | 1200/2000 Hz |
| Material: | Aluminum | IP Rating: | IP65 |
| Panel Size: | 500*500*47.5mm (W*H*D) | Transparency: | >40% |
| High Light: | indoor LED screen,outdoor full color LED display |
||

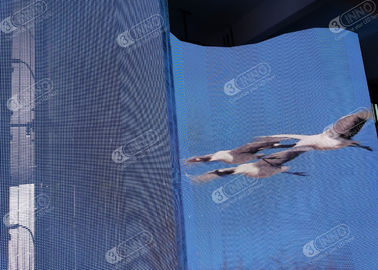

IP65 Full Color LED Transparent Mesh , Aluminum Fast Lock Concert Sign P8 ~ P15mm
Main Feature:
IP65 : High protection level IP65, ideal for indoor and outdoor rental application
Curve : with 15 degrees rotating curve, enable to create kinds of attractive shapes
Lightweight:: One square meter is only 26kg! Save much transportation cost!
500*1000mm: 500*1000mm panel makes assembling very easy in short time.
Fast : Fast installation, dismantling, and maintenance, save much labor and time cost.
Transparent : See-through design make the stage look more bigger and gorgeous
Compatible : Same structure for indoor and outdoor application
Pixel Pitch : Many pixel pitch available from P8.9mm to P15.62
Application:
Perfectly used for indoor stage, concerts, cooperating events, studio, clubs, celebration,etc.
Specification:
| Concert Outdoor Mesh LED Display | Unit | M-o8 | M-o10 | M-o12 | M-o15 |
|---|---|---|---|---|---|
| Pixel pitch | mm | 8.9 | 10.41 | 12.5 | 15.62 |
| Brightness | cd/㎡ | 5000/6500(H) | 3800/5000(H) | 5000/6500(H) | 5000/6000(H) |
| Pixel density per tile | pixels | 56×112 | 48×96 | 40×80 | 32×64 |
| Pixel density | pixels/sqm | 12544 | 9216 | 6400 | 4096 |
| Viewing angle(H/V) | degree | 140/140 | 140/140 | 140/140 | 140/140 |
| Weight | kg/tile | 13 | 13 | 12 | 10 |
| Weight | lbs | 29 | 29 | 26 | 22 |
| Power consumption(max/ave) | W/tile | 320/105 | 240/80 | 320/105 | 320/105 |
| Size(W×H×D) | mm/tile | 500×1000×47.5 | |||
| LED type | ﹣ | 3-in-1 SMD | |||
| Processing | bit/color | 14/16 | |||
| Colors | trillion | 4.39/281 | |||
| Refresh rate | Hz | 1200/2000 | |||
| Operating power | VAC,Hz | 220/110,50/60 | |||
| Material | ﹣ | Aluminum | |||
| Weight | kg/panel | 13 | |||
| Serviceability | ﹣ | Rear | |||
| Lifetime | hrs | 100,000 (@50% brightness) | |||
| Operating temperature | ℃ | ﹣30 ~50 | |||
| Operating humidity | RH | 10%~90% | |||
| Control System | ﹣ | Nova/Linsn/Dbstar | |||
| Source compatibility | ﹣ | AV,S-Video,HDMI,DVI,DP,VGA (with VP) | |||
| IP rating | ﹣ | IP65 | |||
Competitive advantage:
1.Professional
3Cinno is a high-tech company whose staff is engaged in the professional development
and production of indoor/outdoor full color LED display many years
2. Good quality and competitive price
As professional manufacturer who engaged in LED display many years, we ensure quality is under
strict control, not only prices are very competitive.
3.CE&ROHS&ISO9001 certificated
CE&ROHS&ISO9001 ensure the quality of LED display
4. Good after-sales service
Our after-sales engineers have been in LED field for more than 5 years who will give the customer
the most professional guidance about LED.
5. On-site service is available.
Upon the customer’s request, our engineers could fly to the country for installation guide, including
debugging and test service.
