2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport

2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport

2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport
2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport

Large Image :  2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport

Product Details:
Place of Origin: CHINA
Brand Name: HANTANG
Certification: CE,RoHS,C-TICK,ISO.
Model Number: HTGJ-OF20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter/Square Meters module
Price: US $ 800 - 1,000 / Square Meter
Packaging Details: Plywood case/Flight cases etc.
Delivery Time: 10-15 working days.
Payment Terms: 30%before producing,the balance before shipping
Supply Ability: 3000sq.m/month.
Detailed Product Description
High Light:

led outdoor displays

,

outdoor led display screen

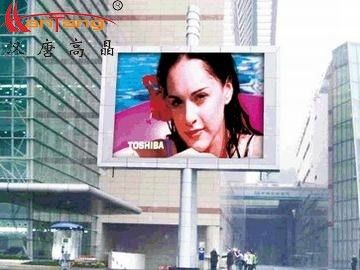

2R1G1PB P20 Outdoor LED Display For Meeting Screen / Airport





Pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm,31.25mm...
Application :billboard,concerts and and stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...

Features:

1,Using high -quality LED light tube , high brightness,  low light attenuation

2,100% polycarbonate ( the PC) as a suite of raw materials , with no distortion, no cracking, good toughness, simple splicing

3,LED screen Screen brightness is automatically adjusted to follow the external environment , does not produce light pollution

4 High refresh rate , scan mode screen is 2000HZ static screen  is more than 4000HZ

5,  Waterproof IP65




Specification:

Usage  Outdoor
Pitch(mm) 20
Pixel Constitute 2R1G1PB
LED--Opto+Silan R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm)
R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd)
Pixel Density(dots/sqm) 2500
Module Size(mm) 320*160
Module Resolution 16*8
Recommended Minimum Viewing Distance(m) ≥20
Viewing Angle(°C) V60, H120
Average Power Consumption 250W/sqm
Brightness (white balance) ≥6500cd/sqm
Size of cabinet(mm) 1280*960*80
Weight of cabinet 60kg/sqm
Cabinet pixels(dot) 64*48
Frame frequency ≥60Hz
Refresh rate ≥2000Hz
Grey color ≥16.7M
Brightness adjustment 256 grade manual, 8 grade automatic
Average NO failure time 5000 hours
Life span 100000 hours
Working temperature -30 °C ~+60°C
Driving Voltage 5VDC
Working Voltage 110 to 220VDC
Scan Mode  static
Display Function Video, Animation, Graphics, other
Operating system Windows (2000/XP/Vista)
Control distance CAT5 cable:<100 m; Single fiber:<10 km
