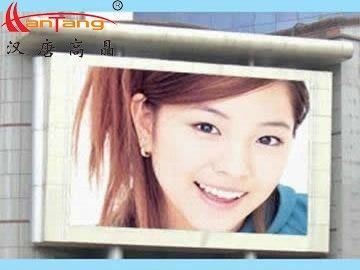

P10 Brightness 7000 cd/sqm Outdoor LED Display Support Customised Production Module Resolution 16*16
Pixel pitch:10mm,12mm,12.5mm,14mm,16mm,20mm,25mm,31.25mm,37.5mm...
Application :billboard,concerts and and stage, events,stadium,advertising ,train station,shopping center,meeting screen ,airport ,mall...
Features:
1,Using high -quality LED light tube , high brightness, low light attenuation
2,100% polycarbonate ( the PC) as a suite of raw materials , with no distortion, no cracking, good toughness, simple splicing
3,LED screen Screen brightness is automatically adjusted to follow the external environment , does not produce light pollution
4, High refresh rate , scan mode screen is 2000HZ static screen is more than 4000HZ
5, High gray levels, the scan screen 8192 , static screen 65536
6, Waterproof IP65
7, Fire rating 94-V0, anti- UV ( ultraviolet ) , resistant to high temperature and acid salt spray
Specification:
| Usage |
Outdoor |
| Pitch(mm) |
10 |
| Pixel Constitute |
1R1G1B |
| LED--Opto+Silan |
R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm)
R:(450-500mcd) G:(1600-1800mcd) G:(350-400mcd) |
| Pixel Density(dots/sqm) |
10000 |
| Module Size(mm) |
160*160 |
| Module Resolution |
16*16 |
| Recommended Minimum Viewing Distance(m) |
10 |
| Viewing Angle(°C) |
V60, H120 |
| Average Power Consumption |
270W/sqm |
| Brightness (white balance) |
7000cd/sqm |
| Size of cabinet(mm) |
640*640*120 |
| Weight of cabinet |
60kg/sqm |
| Cabinet pixels(dot) |
64*64 |
| Frame frequency |
≥60Hz |
| Refresh rate |
≥2000Hz |
| Grey color |
≥16.7M |
| Brightness adjustment |
256 grade manual, 8 grade automatic |
| Average NO failure time |
5000 hours |
| Life span |
100000 hours |
| Working temperature |
-30 °C ~+60°C |
| Driving Voltage |
5VDC |
| Working Voltage |
110 to 220VDC |
| Scan Mode |
1/4 |
| Display Function |
Video, Animation, Graphics, other |
| Operating system |
Windows (2000/XP/Vista) |
| Control distance |
CAT5 cable:<100 m; Single fiber:<10 km |
