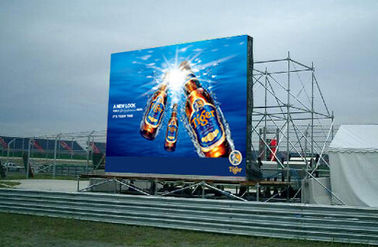

P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display

P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display

P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display
P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display

Large Image :  P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display

Product Details:
Place of Origin: CHINA
Brand Name: HANTANG
Certification: CE,ROHS,C-TICK,ISO
Model Number: OF16
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Price: N/A
Packaging Details: Carton/Plywood case/Airfreight case
Delivery Time: 15~18days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sq.m/month
Contact Now
Detailed Product Description
Highlight:

led outdoor displays

 P16 Full Color Module Size 256*256 Iran Application Graphics Outdoor LED Display



Features:

1. Vivid pictures
2. Big viewing angle distance
3. Relative low price
4.Two years warranty



Technical Parameters of P16 full color outdoor LED display
Usage  Outdoor
Pitch(mm) 16
Pixel Constitute 1R1G1B
LED--Opto+Silan R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(450-500mcd) G:Ⅳ(1600-1800mcd) G:Ⅳ(350-400mcd)
Pixel Density(dots/M2) 3906
Module Size(mm) 256*258
Module Resolution 16*16
Recommended Minimum Viewing Distance/M >=16
Viewing Angle(°) V40, H110
Average Power Consumption 350W/㎡
Brightness (white balance) >=7000cd/㎡
Size of cabinet(mm) 1024*768*150
Weight of cabinet 60kg/M2
Cabinet pixels(dot) 64*48
Frame frequency ≥60Hz
Refresh rate ≥360Hz
Grey color ≥16.7M
Brightness adjustment 256 grade manual, 8 grade automatic
Average NO failure time 5000 hours
Life span 100000 hours
Working temperature -30 °C～+60°C
Driving Voltage 5VDC
Working Voltage 110 to 220VDC
Scan Mode  static
Display Function Video, Animation, Graphics, other
Operating system Windows (2000/XP/Vista)
Control distance CAT5 cable:<100 m; Single fiber:<10 km

P16 Full Color Module Size 256 x 256 Graphics Outdoor LED Display 0







Tag:

outdoor led screen,

led video panels,

led display screens
