Name: Waterproof Outdoor Full Color LED Display P20 LED Screen Cabinet
Brand: China Signage Display Online Marketplace
SKU: P20
Price: 50,000.00 USD
Availability: InStock

About Us

company profile Factory Tour Quality Control

Our Products

Home

Waterproof Outdoor Full Color LED Display P20 LED Screen Cabinet

Large Image : Waterproof Outdoor Full Color LED Display P20 LED Screen Cabinet

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SKYVIEW
Certification:	3C/GMC/ISO9001/CCPC
Model Number:	P20

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	1-100000usd
Packaging Details:	Wooden Case/ Flight Case
Delivery Time:	7-15 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	>500sqm/month

Contact Now

Detailed Product Description

Product Name:	Waterproof Outdoor P20.0mm Full Color LED Display Cabinet Screen	Pixel Pitch:	20 Mm
Size Of Panel:	320x160	Brightness:	6500
Usage:	Advertising	Pixel Density:	2500
Weight:	55 KG For Each Cabinet
Highlight:	Led Video Display

Waterproof Outdoor Full Color LED Display P20 LED Screen Cabinet

Description

1) Strong Durable Outdoor Fix Screen
2) Excellent capability of antisepsis, waterproof
3) More faster to assemble or disassemble it without any tool.
4) High Gray Scale
.

specifications

1. Outdoor Led Display Cabinet technical parameter

Pixel Density(pixel/㎡)	2500
White Balance Brightness (cd/㎡)	≥6500(adjustable)
Max Power Consumption	800W/cabinet
Average Power Consumption	400W/cabinet
Color Temperature	3200-9300(adjustable)
View Angle	Horizontal 110°；Vertical 110°
Best Viewing Distance(m)	30m—300m
Display Work Method	Static
Digital Processing	14 bit
Gray Scale	65536 levels per color
Refresh Frequency (Hz)	≥1200
Input Signal	Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc
Waterproof	Yes
Working Temperature(ºC)	-20～+45
Humidity(RH)	10% - 80%
Stored Temperature (ºC)	-30～+60
Lifetime (50%Brightness)(Hours)	≥100,000
Input Voltage(VAC)	AC 220(or 110V)
Input Power Frequency(Hertz)	50 to 60
Data Connection	Super CAT6 Cable or Fiber
Operating System	Windows(98/2000/XP/Vista)
Blind Spot Rate	＜0.00001
Control Distance	CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers
Panel Input Format (With Video Processor)	VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV
Earth Leakage Current(mA)	＜2

2. Outdoor LED Display Module

Pixel Configuration	DIP346	Pixel Pitch	20 mm
Module Resolution	16x8	Module Size(W*H)	320mm x 160mm
Weigth Per Module	0.82kg	Max Power Consumption	22w

3. Outdoor LED Display Cabinet

Cabinet Size(W*H)	1280mm × 960mm	Module Qty	24 pcs
Cabinet Resolution	64 x 48	Cabinet Area	1.2288㎡
Weight Of One Cabinet	55 kg	Cabinet Pixel	2500
Cabinet Flatness	＜0.5/㎡	Cabinet Material	Steel Cabinet

Applications

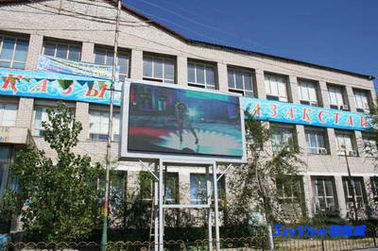

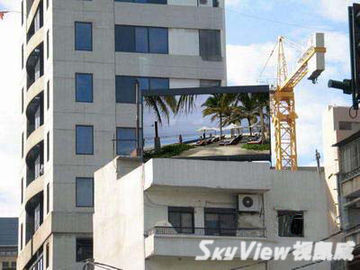

The Outdoor Led Display Cabinet are popular used in Outdoor Shopping Center ,Outdoor Building,Foodball Field,crossroad,highway,Concert,airport etc;

competitive advantage

1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price.
4. High Quality Driving IC .
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
