Name: Outdoor IP65 P8 Iron LED Display Cabinet Rental LED Screen 1024x768mm
Brand: China Signage Display Online Marketplace
SKU: P8
Price: 50,000.00 USD
Availability: InStock

About Us

company profile Factory Tour Quality Control

Our Products

Home

Outdoor IP65 P8 Iron LED Display Cabinet Rental LED Screen 1024x768mm

Large Image : Outdoor IP65 P8 Iron LED Display Cabinet Rental LED Screen 1024x768mm

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SKYVIEW
Certification:	3C/GMC/ISO9001/CCPC
Model Number:	P8

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	1-100000usd
Packaging Details:	Wooden Case/ Flight Case
Delivery Time:	15-20 Working Days
Payment Terms:	L/C, T/T
Supply Ability:	>350sqm/month

Contact Now

Detailed Product Description

Product Name:	Hot Sale Outdoor Fix Installation P8.0mm 1024x768 Iron Led Display Cabinet	Pixel Pitch:	8 Mm
Size Of Panel:	256 X 128	Brightness:	7000
Usage:	Advertising Fixture	Pixel Density:	15625
Weight:	36 KG For Each Cabinet
Highlight:	High Brightness Led Display

Outdoor IP65 P8 Iron LED Display Cabinet Rental LED Screen 1024x768mm

Description

1) Rustfree Iron Cabinet
2) High Gray Scale
3) IP65 Waterproof
4) Evironmental Friendly

specifications

1. Indoor led Display technical parameter

Pixel Density(pixel/㎡)	15625
White Balance Brightness (cd/㎡)	≥7000(adjustable)
Max Power Consumption	800W/cabinet
Average Power Consumption	400W/cabinet
Color Temperature	3200-9300(adjustable)
View Angle	Horizontal 120°；Vertical 120°
Best Viewing Distance(m)	8m—150m
Display Work Method	1/4 scan
Digital Processing	14 bit
Gray Scale	65536 levels per color
Refresh Frequency (Hz)	≥1200
Input Signal	Video: PAL/NTSC Option: VGA , Video , DVD,TV, SDI.HDMI etc
Waterproof	Yes
Working Temperature(ºC)	-20～+45
Humidity(RH)	10% - 80%
Stored Temperature (ºC)	-30～+60
Lifetime (50%Brightness)(Hours)	≥100,000
Input Voltage(VAC)	AC 220(or 110V)
Input Power Frequency(Hertz)	50 to 60
Data Connection	Super CAT6 Cable or Fiber
Operating System	Windows(98/2000/XP/Vista)
Blind Spot Rate	＜0.00001
Control Distance	CAT6 cable:150 meters; Single Fiber: Up To 10 Kilometers
Panel Input Format (With Video Processor)	VGA,DVI,RGBHV, PbPr (HDTV),Composite, S-Video, TV
Earth Leakage Current(mA)	＜2

2. Indoor LED Display Module

Pixel Configuration	DIP246	Pixel Pitch	8 mm
Module Resolution	32X16	Module Size(W*H)	256mm x 128mm
Weigth Per Module	0.65kg	Max Power Consumption	30 w

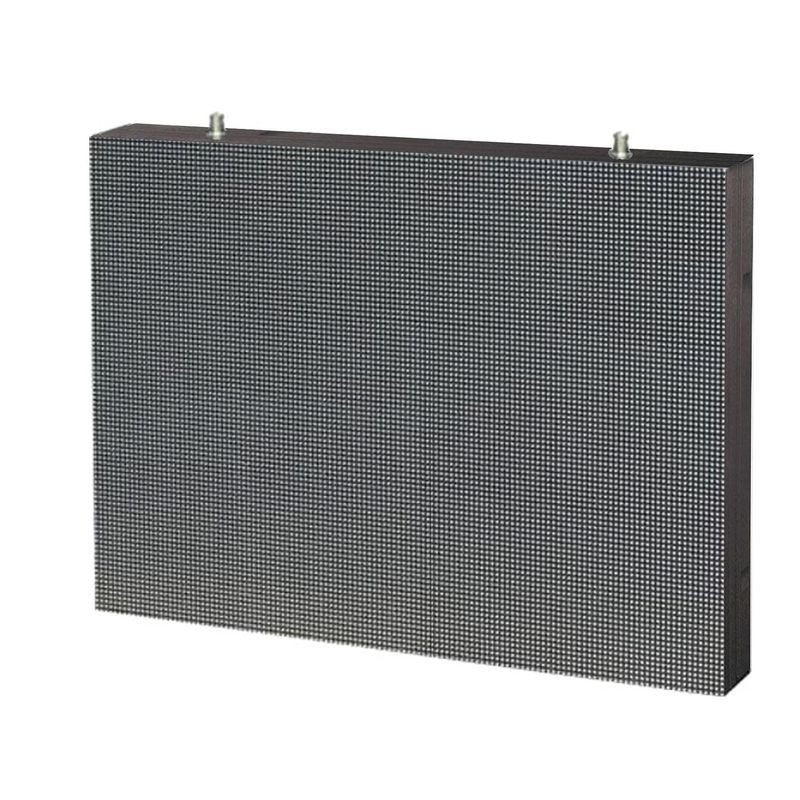

3. Indoor LED Display Cabinet

Cabinet Size(W*H)	1024mm × 768mm	Module Qty	24 pcs
Cabinet Resolution	128 x 96	Cabinet Area	0.79㎡
Weight Of One Cabinet	36 kg	Cabinet Pixel	15625
Cabinet Flatness	＜0.5/㎡	Cabinet Material	Die Casting Cabinet

Applications

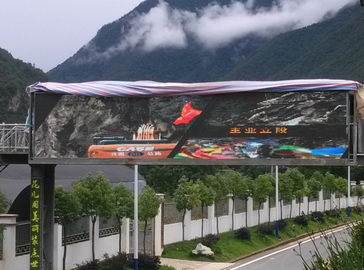

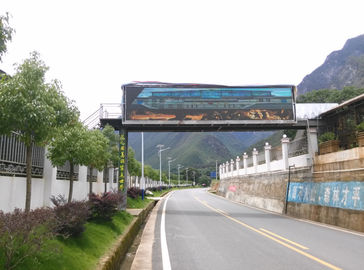

Outdoor Full Color LED Display Cabinet are popular used Outdoor Shopping Center , Building,Foodball Field,crossroad,highway,Concert,airport etc;

competitive advantage

1. Good Sevice , 24/7 online support service.
2. Good Quality For Every LED Display Product.
3. Good Price and Good Salesman.
4. High Cost Performance.
5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
6. Two Years Maintenance Service With Free.
