Product Details:
Payment & Shipping Terms:
|
| Calibrated Brightness(cd/sqm,nit): | 8500 Nits(adjustable) | LED Packing: | DIP |
|---|---|---|---|
| Pixel Configuration: | DIP346 1R1G1B | Pixel Density(dots/sqm): | 6944 |
| Pixel Pitch(mm): | 12 | Average Power Consumption: | 450 W/sqm |
| Communication Options: | Wire Ethernet, Fiber Ethernet,RF Wireless,GPRS | Control Mode: | Synchronous Or Asynchronous |
| Display Function: | Video | LED Drive: | Constant-current |
| Refresh Rate(Hz): | >1200 Hz | Scan Driver: | 1/4 Scan |
| Screen Dimension: | Custom | Screen Operation Mode(scan/static): | 1/4 |
| Tube Chip Color: | Full Color | Usage: | Outdoor Advertising |
| View Angle(degree)(50% Brightness): | V60/H120 | ||
| High Light: | led curtain display,rgb led display board |
||

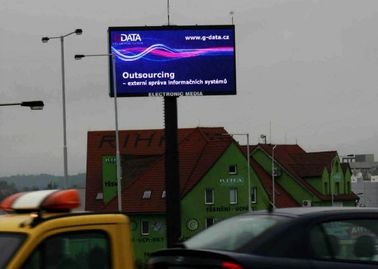

Pitch 12mm Full Color Outdoor LED Display Boards , High Brightness 1/4 Scan 8500 nits
Quick Detail:
1) Stable quality:Opto + Silan chipset;
2) High brightness:>6500 nits;
3) Scan driver:1/4 current;
4) Module size(L*W):192*192mm;
Description:
P12 Outdoor Full Color LED Display Screen
12mm pixel pitch,1R1G1B,6944 dots/sqm,P12 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P12 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
P12 Outdoor Full Color LED Display Screen
|
Pixel configuration |
DIP346 1R1G1B |
|
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
|
Pixel pitch(mm) |
12 |
|
|
Pixel density(dots/sqm) |
6944 |
|
|
Calibrated brightness(cd/sqm,nit) |
8500 nits(adjustable) |
|
|
Calibrated brightness proportion ratio |
R:G:B=3:6:1 |
|
|
Contrast ratio |
4,500:1 |
|
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
|
View angle(degree)(50% brightness) |
V60/H120 |
|
|
Color capability |
4.4 trillion |
|
|
Refresh rate(Hz) |
>1200 Hz |
|
|
Frame frequency(Hz) |
>60 Hz |
|
|
Interface port |
DVI interface(DVI connector) |
|
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
|
Protection grade |
IP65 front side/IP43 back side |
|
|
LED Drive |
Constant-current |
|
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
|
Signal transmission direction |
Horizontal |
|
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
|
Storage temperature(Celsius degree) |
-35 ~70 |
|
|
Operation humidity(RH) |
0-95% |
|
|
Operation humidity(RH) |
0-99% |
|
|
Service |
Front and back service optional |
|
|
Control mode |
Synchronous & asynchronous available |
|
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
|
Power |
120/240 VAC single phase(50-60Hz) |
|
|
Maximum power consumption(W/sqm) |
900 |
|
|
Average power consumption(W/sqm) |
450 |
|
|
Screen operation mode(scan/static) |
1/4 |
|
|
Module configuration(Pixels quantities of the module) |
Length |
16 |
|
|
Height |
16 |
|
Module dimensions(mm) |
Length |
192 |
|
|
Height |
192 |
|
Cabinet configuration |
Length |
80 |
|
|
Height |
80 |
|
Cabinet dimensions(mm) |
Length |
960 |
|
|
Height |
960 |
|
|
Width |
120 (+30~35mm module) |
|
Aspect Ratio(L:H) |
4:3 or 16:9 |
|
|
Packaging configuration |
1~4 standard cabinets in a packing case |
|
|
Packing material |
Wooden case/carton/flight case(optional) |
|
|
Packing weight(KG) |
net |
50KG/m2 |
|
|
gross |
55KG/m2 |
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
