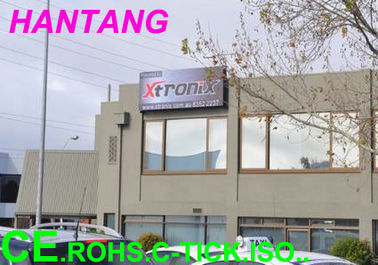

High Brightness P10 Video Wall Outdoor LED Display For Billboard

Large Image : High Brightness P10 Video Wall Outdoor LED Display For Billboard

Product Details:

Place of Origin:	CHINA
Brand Name:	HANTANG
Certification:	CE,ROHS,C-TICK.ISO etc
Model Number:	HTGJ-OF10

Payment & Shipping Terms:

Minimum Order Quantity:	1sq.m
Price:	US $ 1,200 - 1,350 / Square Meter
Packaging Details:	Carton/Plywood case/Flight case
Delivery Time:	10~20days after deposit.
Payment Terms:	30% before producing,the balance before shipping
Supply Ability:	10000sq.m/month

Contact Now

Detailed Product Description

Highlight:	led outdoor displays

P10 Video Wall Outdoor LED Display

Application :billboard, concerts and and stage, events, stadium, advertising , train station, shopping center, meeting screen , airport , mall...

Features:

1, Using high -quality LED light tube , high brightness, low light attenuation

2, 100% polycarbonate ( the PC) as a suite of raw materials , with no distortion, no cracking, good toughness, simple splicing

3, LED screen Screen brightness is automatically adjusted to follow the external environment , does not produce light pollution

4, High refresh rate , scan mode screen is 2000HZ static screen is more than 4000HZ

5, Waterproof IP65

Technical Parameters of Outdoor P10 LED video wall
Usage	Outdoor
Pitch(mm)	10
Pixel Constitute	1R1G1B
LED--Opto+Silan	R:λd(625-630nm) G:λd(522.5-525nm) B:λd(467.5-470nm) R:Ⅳ(450-500mcd) G:Ⅳ(1600-1800mcd) G:Ⅳ(350-400mcd)
Pixel Density(dots/㎡)	10000
Module Size(mm)	160*160
Module Resolution	16*16
Recommended Minimum Viewing Distance(m)	>=10
Viewing Angle(°C)	V60, H120
Average Power Consumption	200W/㎡
Brightness (white balance)	7000cd/㎡
Size of cabinet(mm)	640640120
Weight of cabinet	60kg/㎡
Cabinet pixels(dot)	64*64
Frame frequency	≥60Hz
Refresh rate	≥360Hz
Grey color	≥16.7M
Brightness adjustment	256 grade manual, 8 grade automatic
Average NO failure time	5000 hours
Life span	100000 hours
Working temperature	-30 °C ～+60°C
Driving Voltage	5VDC
Working Voltage	110 to 220VDC
Scan Mode	1/4
Display Function	Video, Animation, Graphics, other
Operating system	Windows (2000/XP/Vista)
Control distance	CAT5 cable:<100 m; Single fiber:<10 km
