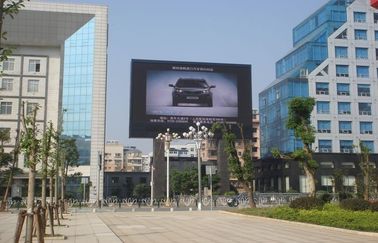

Energy saving outdoor led displays for banks / school , waterproof led screen
Quick Detail:
1. 6,944 dots per square meter;
2. 180 mm thickness.
3. At least 2 years' warranty for entire screen.
4. on-site professional service.
5. hotline service, fast response.
6. adequate spare parts supply.
7. regular maintenance service.
8. technical support on upgrades and replacement.
1)Outdoor led video System structure
2)outdoor led video Module
|
Module Size(W * H)
|
192mm*192mm
|
Pixel Configeration
|
1R,1G,1B
|
|
Pixel Pitch
|
12mm
|
Resolution(W*H)
|
16dots*16dots
|
|
Pixel Density
|
6944 dot / m2
|
Driving Method
|
1/4 scan Current
|
3)led video cabinet
|
Cabinet Size(W * H)
|
960mm*960mm
|
Module Qty
|
25pcs
|
|
Cabinet Resolution(W * H)
|
80dots*80dots
|
Cabinet Pixel
|
6400
|
|
Weight
|
50kg/pc
|
Area
|
0.9216(m2)
|
|
Avarage Power Consumption
|
267W/m2
|
Max Consumption
|
800W
|
Application:
Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1. Video display for advertisement
2. Live broadcast for news, sport, concert…
3. Dynamic display for logo, text, video
4. Information display for time, schedule, text
5. Stage background
Function and Technology Character:
1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
2. Information source can be camera, video, VCD, DVD, LD, TV and so on.
3. One interface for sound signal and two for video signal at least.
4. Multiform language editions, such as English, French, Germany, Greek, Russian and so on
5. Connected and controlled by PC via Lan and remote control.
6. Super correcting technology for distortion.
7. Clear picture without flicker and distortion.
8. Show everything with your PC does synchronously.
9. Brightness, contrast, saturation can be adjust by itself and manual.
Advantage of our factory:
- Fully automatic machine production, can ensure the consistency of the LED, the tin point is uniform and full, can greatly avoid the cold solder, false solder, dead solder. So that to guarantee the color consistency and the stability of the display.
- Fully automatic machine production, also greatly reduce the cost of the labors, reduce our cost of production, so our price is much competitive.
- Constantly update and application of advanced technology.
- Full color display is our main product, fix install and rental business for advertising, concert, performance and so on.
- Synchronous and asynchronous system. Base on client’s requirement.
- We have new design 3G control system display, with GSM system, can be remote control, one can control more. If clients want.
- New cabinet design,weight light and convenient.
Specifications :
|
Model No.:ZCLED-O-F-P12
|
|
Pixel Pitch
|
12mm
|
|
Module dimension
|
192mm*192mm
|
|
Density
|
6,944 dots/sqm
|
|
Brightness (calibrating value)
|
7500nits
|
|
View Angle (min, 50% brightness)
|
H≥110° V≥50°
|
|
Viewing distance
|
12～200m
|
|
Brightness Control
|
100 levels
|
|
Grey Scale
|
1024
|
|
Frame Frequency
|
≥60Hz
|
|
Refresh Rate
|
≥1200Hz
|
|
Drive Type
|
Constant current drive
|
|
Scan Type
|
1/4
|
|
Input Voltage
|
AC 220/110V±15%
|
|
Average Power Consumption(W/㎡)
|
267W/ ㎡
|
|
Max Power Consumption(W/㎡)
|
800W/ ㎡
|
|
Color Temperature
|
6500 deg. k
|
|
Malfunction dot rate
|
≤0.0001
|
|
MTBF
|
5000hs
|
|
Module Brightness Uniformity
|
≤4%
|
|
Input signal
|
RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPOSITON.
|
|
Control system
|
LINSN Synchronous Control System
|
|
Software
|
LED Studio
|
|
System Operation Platform
|
WINDOWS 98,2000,XP,7,Vista etc.
|
|
Protection Level
|
IP65
|
|
Earth Leakage Current
|
<1.5mA
|
|
Operating Temperature
|
-25℃ ～ +65℃
|
|
Storage Temperature
|
-35℃ ～ +85℃
|
|
Operating Humidity Range
|
operating 10~99%
|
