P12 IP65 SMD Rental LED Display 1R1G1B , Outdoor LED Display for Advertising
Quick Details:
1. Dicolor I-Magic Indoor P12 Rental LED Panel
2. High referesh Rate
3. Vivid and sharp image
4. Best solution for events
Description:
I-Magic Indoor LED Display
1. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
2. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
4. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
5. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
6. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
7. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
Application:
Stage Background;
Show & Exhibitions;

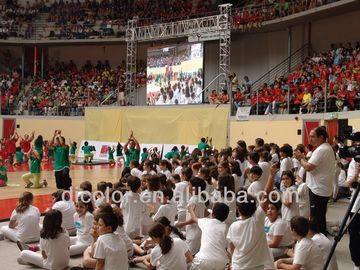

Concert And Other Entertainment Events;
Company events; Club & Others..
Specification:
Pixel Pitch | 12.8mm |
Module Resolution | 25x25 |
Module Pixel Quanity | 625 |
Module Dimension | 320x320mm |
Pixel Configuration |
DIP346 1R1G1B |
Driving IC | JXI5020/MBI5024 |
Driving Mode | 1/4 Scan |
Application | outdoor |
Cabinet Dimension | 640x640mm |
Power Supply Quanity | 1 pcs 5V60A |
Module quantity | 2pcsx2pcs |
Type | Die-casting aluminum (Suitable for ground support,hoisting or fix installation) |
Module Weight | 12.8Kg |
Signal Interface | DVI |
Source Compatibility | YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI |
Maintenance type | Front and back |
Pixel Density | 6104sqm |
Ave.Power Consumption |
140W/sqm |
Max.Power Consumption |
≤500W/sqm |
Input Power | 630W/sqm |
Brightness | 6000 nits |
Contrast | 2000 |
Color Depth | 8192 |
Refresh Rate | ≥600Hz |
Frame Frequency | 60Hz |
Input Voltage | 220V AV |
Working Temperature |
-20℃~65℃ |
Working Humidity |
10%-90%RH |
Optimal Viewing Distance |
24M |
Viewing Angle | H: 135°/V: 55° |
IP Grade | IP65 |
Lifespan | 100000H |
Competitive advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.
3. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
changing LED module.
4. Support different shapes installation: Flat and curved ,create infinite stage styles..
5. Superb performance/price ratio solution for rental market.
6. 24/7 professional after sales service, and on-site service is available.
