Product Details:
Payment & Shipping Terms:
|
| Usage: | Outdoor | Tube Chip Color:: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels:: | 8mm |
| Brightness:: | 6000 To 8000cd/sqm | Protection Level:: | IP65 |
| High Light: | outside led screen,led outdoor advertising board |
||

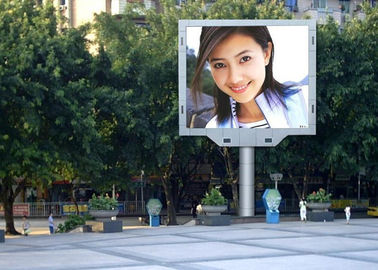

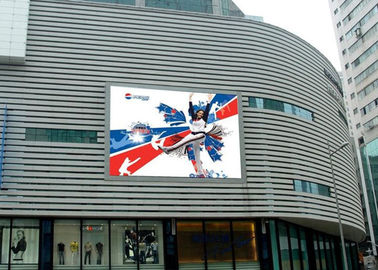

Long Lifetime Pixel 8mm Animation Outdoor LED Display moduel for commercial Advertising
Our P8 Outdoor LED Display are the light-weight and super-thin led display screens,whichare very suitable for video rental businesses and large square applications. Jointed correctly, easy to install and dismount, simple structures are the main features of the screens.
It is the best choice for creative designing company to achieve large square video show.
Main Features:
1. Light-weight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Main Technical Specification
|
Basic Info |
|
|
Type |
P8 Outdoor LED Display |
| Application |
Outdoor advertising |
|
LED Lamp |
|
|
Lamp |
SMD352 8 |
|
Color blending |
R:G:B=3:6:1 |
|
R |
Wave length: 620-625nm Brightness: 500-700mcd |
|
G |
Wave length: 520-525nm Brightness: 1000-1400mcd |
|
B |
Wave length: 470-475nm Brightness: 150-260mcd |
|
LED Module |
|
|
Pixel pitch |
4/5/6mm |
|
Pixel density |
62500-27777dot/m2 |
|
Pixel configuration |
1R1G1B |
|
Module resolution |
32*32 |
|
Dimension |
128*128/160*160/192*192 |
|
Weight |
0.2kg |
|
LED Display |
|
|
Size |
93inch |
|
Resolution |
288*512 |
|
Contrast ration |
2000:1 |
|
Viewing angle |
120-140° |
|
Best viewing distance |
5-20m |
|
Brightness |
≥5000cd/m2 |
|
Color |
16.7M |
|
Scanning rate |
1/8 dynamic scanning |
|
Refresh rate |
≥1200Hz |
|
Frame frequency |
≥60Hz |
|
Grey scale |
16bit |
|
Life span |
100,000h |
|
Mean free error time |
7000h |
|
Defect rate |
<0.0001 |
|
Flatness |
between pixel≤0.5mm;between module<1mm |
|
Switching power supply |
5V/40A, 5V/30A |
Advantage :
1. Stable Quality, Lowest Price
2. Large Scale Production
3. Support Syn/Asyn/3G Wireless Control
4. Wide viewing angel
