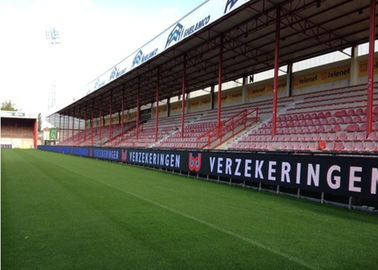

P20 Sport Stadium Perimeter Outdoor LED Display Screen Waterproof High brightness
P20 Sport Stadium Perimeter Outdoor LED Display adopts physical and virtual pixel technology
which makes the picture more clear and vivid, no flicker and blind dots. It can be assembled,
disassembled and repaired very easy.
Wide application field: advertising LED display, stadium perimeter LED display, mobile led display
for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display
for rates showing, stage performances and so on.
Features & Technical Specification:
1. Wide application field: advertising LED display, stadium perimeter LED display, mobile led display
for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for
rates showing, train & bus station, airport, telecommunication LED screen system for information
showing and instruction, stage performances and so on.
2. High Contrast and Frequency: 4000:1 and 5000HZ, which is a very high level to ensure a vivid image
of our LED screen system.
3. Good quality LED chip: Supplied by Nichia, Cotco cree,Toyota,Silan.Optec,& other high strictly
selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Very high quality and Clear vivid image quality: even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. High Brightness of LED Display: 7500-nit brightness (for outdoor full color)(more than 2000 nits brightness for indoor full color) capacity throughout product lifetime of the LED
display6. Easy Installation & Using: easy & simple installation interface and user friendly software to
ensure the user friendly interface of the LED screen system.
Parameter table
|
Pixel pitch
|
12mm
|
LED encapsulation
|
DIP 346
|
|
Pixel configuration
|
1R1G1B
|
View Angle
|
120°/90°
|
|
Module Resolution
|
16x16dots
|
Module size
|
192x192mm
|
|
Pixeldensity
|
6,944dots/sqm
|
Brightness
|
>8000nit
|
|
Working Temp
|
-20°C~+60°C
|
Max power consumption
|
850W/sqm
|
|
Working Humidity
|
10%~90%
|
Average power consumption
|
300W/sqm
|
|
Working voltage
|
AC110/220V
|
Driving Method
|
1/2 scan,constant current
|
|
Optimum viewing distance
|
>10m
|
Refresh rates
|
≥1200Hz
|
|
MTBF
|
>5,000hours
|
|
R:625nm±5.0nm,IV:400-450mcd
|
|
Gray level
|
RGB/8192/14bit
|
LED parameter
|
G:525nm±2.5nm,IV:1,800-2,200mcd
|
|
Life span
|
>100,000hours
|
|
B:470nm±2.5nm,IV:350-450mcd
|
|
Blind sport rate
|
<0.00001
|
Display Function
|
Graphic,Animation,and Video
|
|
Warranty period
|
2 ~5 years
|
Usage
|
fixed/rental
|
|
Signal sources input
|
DVI,VGA,SDI,HD-SDI,TV,HDTV,NTSC/PAL,S Video,etc
|
|
Wide Application
|
Outdoor / indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc.
|
1. Designed according to the client's atandards.
2. Usage: Outdoor / Indoor Sports perimeter, football stadium, basketball stadium, soccer stadium etc.
3. Waterproof: IP65 front, IP43 rear. The system can stand all weather condition.
4. High luminance and uniformity, wide view angle and various content show.
