HD Full Color Wireless Indoor Advertising LED Display For Movie Theatre

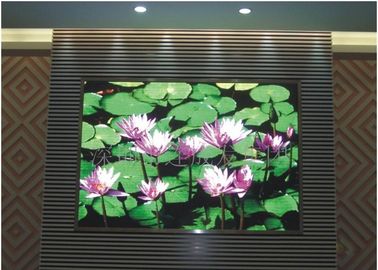

Large Image : HD Full Color Wireless Indoor Advertising LED Display For Movie Theatre

Product Details:

Place of Origin:	China
Brand Name:	Ocolour
Certification:	CE/RoHS/FCC/ETL/TUV
Model Number:	OC-ID-P7.62SMD3528

Payment & Shipping Terms:

Minimum Order Quantity:	1 sq.m
Price:	negotiation
Packaging Details:	Plywood cartons or flight case packaging
Delivery Time:	25-30 working days after received your payment
Payment Terms:	40% T/T as prepayment, 60% T/T as balance at factory
Supply Ability:	10000 sq.ft per month (1000㎡ per month)

Contact Now

Detailed Product Description

Pixel Pitch:	7.62 MM	Physical Density:	17222 Dots/㎡
Led Configuration:	1R1G1B	Led Encapsulation:	SMD3528
Module Size:	W 244 × H 122 Mm	Module Resolution:	W 32 X H 16 Dots
Driver Mode:	1/8 Scan	Brightness:	≥1800 CD/sq.m
Highlight:	indoor LED display signs

HD Full Color Wireless Indoor Advertising LED Display For Movie Theatre

Quick Viewing:
Pixel pitch is 0.30inch (7.62mm) for indoor high definition video TV wall;
Popular SMD3528 led type, 1 red 1 green and 1 blue, total 3 in 1 top type SMD led;
Physical density: 1600dots per sq.ft (17222dots per sq.m);
Module pixel configuration of W 32 × H 16 dots;
Module size is W 9.6 x H 4.8 inch (W 244 × H 122 mm);
More than 960Hz refreshing frequency and 14bit grey scale;
120 °Horizontal viewing angle and 120° vertical viewing angle;
Driving method is 1/8 can constant current;
Led lamp lifespan is more than 100000 hours;
Less than 1mm module plainness;
More than 90% of pixel & module lightness uniformity;
Less than 1/ 10⁻⁴ of pixel out of control, dispersion state.

Detailed Description:
With working lifespan at least 100000 hours;
High contrast masks, no dazzle, with better contrast ratio;
Fast get through input/output signal;
Seamless connection;
Excellent heat dissipation, noiseless, preference for indoor use;
Wide viewing angle, adjustable brightness for its vertical of 120 deg;
Eliminate noise for its noiseless design;
Support adjustable color temperature within 2500k010000K.

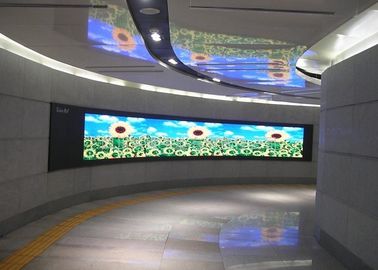

Popular Application:
Sports/advertising/entertainment/stage/events/stadium/train station/bus station/shopping center/airport/exhibitions/car shows/fashion shows/concerts/ceremonies/etc

Specifications:

Item		Technical Parameters
Screen model		OC-ID-P7.62SMD3528
Red chip(wavelength range: 620-630nm, 5nm)		Brightness range:500-900mcd
Green chip(wavelength range: 460-470nm, 4nm)		Brightness range: 1200-1500mcd
Blue chip(Wavelength range: 520-530nm, 4nm)		Brightness range: 300-450mcd
module	Led type	SMD 3 IN 1:SMD3528
	Pixel pitch (mm)	7.62mm(0.30 inch)
	Module resolution (W X H)	W 32 x H 16 dots
	Module dimension(W x H inch)	W 9.6 x H 4.8 inch (W 244 × H 122 mm)
cabinet	Module quantity(W × H)	W 4 × H 8
	Cabinet resolution(W × H)	W 128× 128 dots
	Cabinet dimension(W x H inch)	W 38.43 x H 38.43 inch (W 976 x H 976 mm)
	Cabinet area(sq.ft)	10.25 sq.ft (0.95sq.m)
	Pixel density(dot/m2)	1600 dots/sq.ft(17222 dots/㎡)
	Cabinet flatness(inch)	≤0.08inch (0.2mm)
	Maintenance	Back Access
	Cabinet material	Die-casting Aluminum
Optical parameters	Single-point brightness correction	available
	Single-point color correction	available
	Brightness(nits)	≥1000(color temperature 6500K)
	Color temperature(K)	3200—9300 adjustable
	Viewing angle (Horizontal/Vertical)	120°/120°
	Luminous point center distance deviation	<3%
	Color uniformity	≥97%
	Contrast ratio	4000:1
Electrical parameters	Max power consumption	85w /sq.ft (860 W/m2)
	Average power consumption	25-29W/sq.ft (280-430 W/sq.m)
	Voltage range	AC85~264V,47-63(Hz)
	Security Features	GB4943/EN60950
Processing performance	Frame Rate(Hz)	50/60 Hz
	Drive mode	Constant Current Driver, 1/8 scanning
	Gray levels	16384
	Refresh rate(Hz)	≥960
	processing	≥14 bit
	Module comes with power failure	Save luminance, Color correction, module data
	Video playback capability	2K, 4K Ultra-high-definition video
Use parameter	Life time(hrs)	50,000H
	Operating temperature / humidity	-10 – 40℃ / 10%-80%RH(non-condensing)
	Storage temperature / humidity	-20 – 60℃ / 10%-85%RH(non-condensing)
	Certification	CCC/FCC/TUV/CE/ETL
