Product Details:
Payment & Shipping Terms:
|
| Item Name: | Large Screen Display | LED Type: | SMD2121 |
|---|---|---|---|
| Average Power: | 200-300W/m² | Module Size: | 256mm×128mm |
| Screen Weight: | 40 Kg/m² | Display Color: | 17M~69G Colors |
| High Light: | led advertising displays,perimeter advertising boards |
||

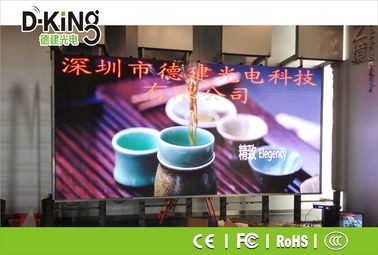

MBI Chip Indoor Full Color P4 Led Large Screen Display for Advertising
Brief Introduction to P4 Large Screen Display:
The SMD 3 in 1 indoor full color led large screen display packs three chips of RGB into a single pixel which is evenly distributed on the unit panel, so that the uniformity of the led advertising screens is excellent. Besides, it uses physical pixel display, no matter for words or images; they can be clearly, finely and vividly displayed.
Material Standard for P4 advertising digital signage:
1. Brightness adjustment: The brightness of the advertising digital signage can be automatically adjusted according to the brightness of the environment.
2. Luminescence chip: 1 red light, 1 green light and 1 blue light.
3. Line protection: Three proofings coating protection on the circuit board (corrosion protection, anti static and damp proof).
4. Circuit board: 1.8mm~2.2mm two-sided glass fiber copper-clad plate.
5. Cabinet: ≥1.5mm steel plate spraying surface fluorocarbon coating processing.
6. Switching power supply: G-energy brand
7. Waterproof cabinet: The cabinet is whole sealing waterproof standard cabinet with rear cover and air fan.
Advantages of D-King Indoor Digital Advertising Signage:
1. Price advantage: D-King indoor digital advertising signage has the most competitive price among the same product in the market, and the same and even better quality.
2. Performance Advantage: High uniformity, high consistency degree and wide visual angle.
3. Quality advantage: Whole controllability from raw material to finished products and from research and development to production ensures reliable product quality.
4. Service advantage: On the same condition, we have perfect service; with the same service, we have more complete cooperation advantages.
Technical Parameters of P4 Indoor Large Screen Display:
| Model | P4 Indoor Large Screen Display |
| Pixel Pitch | 4mm |
| Pixel Composition | 1R1G1B |
| LED Type | SMD2121 |
| Pixel Density | 62500/m² |
| Scanning method | 1/16 |
| Brightness | ≥1600cd/m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 200-300W/m² |
| Max. Power | 800W/m² |
| Pixel No. on Unit Plate | 64*32 |
| Module Size | 256mm×128mm |
| Level up degree | <1mm |
| Viewable Distance | ≥4m |
| Viewable Angle | Horizontal: 140°, Vertical: 140° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M~69G colors |
| Display Color | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 300 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -20℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.
