Product Details:
Payment & Shipping Terms:
|
Item Name: | Led Video Wall Display | LED Type: | SMD2121 |
---|---|---|---|
Average Power: | 200-300W/m² | Module Size: | 256mm×128mm |
Screen Weight: | 40 Kg/m² | Display Color: | 17M~69G Colors |
Highlight: | led advertising displays |
IP65 P4 Indoor Advertising LED Display / Inlaid Electronic Led Video Wall Display
Time is changing, so are the society and price, but not the quality and service of D-King led.
Brief Introduction:
As a leading manufacturing company of large led video wall display in Bao’an District of Shenzhen, Shenzhen D-King Photoelectric Technology Co., Ltd. has won the favor of many customers with high quality digital advertising board, competitive price and satisfactory service. The main products of indoor inlaid electronic led video wall display and outdoor full color advertising led display have such features of high cost performance, high brightness, high color consistency, long service life and stable performance.
Latest Features of P4 Led Video Wall Display:
1. P4 large led display board uses brand-new mask design, so that the lights sent by the LED have zero reflection, thus ensuring the displaying effect.
2. The special downdip technology reasonably enlarges the visual angles of the whole led billboard advertising.
3. The cabinet uses high-temperature pyrolytic coating technology, thus greatly improving the rust protection performance.
4. The flatness of the installation surface is controlled within ±0.2mm.
5. The color consistency is very high.
6. The circuit board uses wave-soldering technique and has green oil oxygen-barrier, thus preventing the circuit from being dampened and oxidized and improving the service life of the led lighting display.
7. The service efficiency of the switching power supply of the led message board is greatly improved, and the power failure rate is greatly reduced.
8. High brightness, high waterproof grade and high reliability.
Technical Parameters of P4 Indoor Led Video Wall Display:
Model | P4 Indoor Led Video Wall Display |
Pixel Pitch | 4mm |
Pixel Composition | 1R1G1B |
LED Type | SMD2121 |
Pixel Density | 62500/m² |
Scanning method | 1/16 |
Brightness | ≥1600cd/m² |
Working Voltage | AC110V±10%, 50Hz-60 Hz |
Average Power | 200-300W/m² |
Max. Power | 800W/m² |
Pixel No. on Unit Plate | 64*32 |
Module Size | 256mm×128mm |
Level up degree | <1mm |
Viewable Distance | ≥4m |
Viewable Angle | Horizontal: 140°, Vertical: 140° |
Screen Weight | 40kg/m² |
Driving Method | Constant current |
Display Color | 17M~69G colors |
Display Color | Manual/Automatic/Remote |
Grey Scale | 256~4096 |
Refresh Frequency | 300 Hz~2440Hz |
Refresh Frame Frequency | 60Hz |
Display Content | TV picture, ads, video, live streaming video, picture and words |
Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
Control Method | Synchronous, asynchronous, remote and wireless |
Transmission Distance | 5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM |
Transmission Distance | ≥72 hours |
Service Life of Led | 100,000 hours |
Mean Time Between Failure | ≥10,000 hours |
Dispersed Incontrollable Point | <0.01% |
Continuous Incontrollable Point | No |
Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
Temperature of Use Environment | -20℃~+50℃ |
Moisture of Use Environment | 10%~90% |
Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.
More Pictures for Your Reference:
Module Picture:

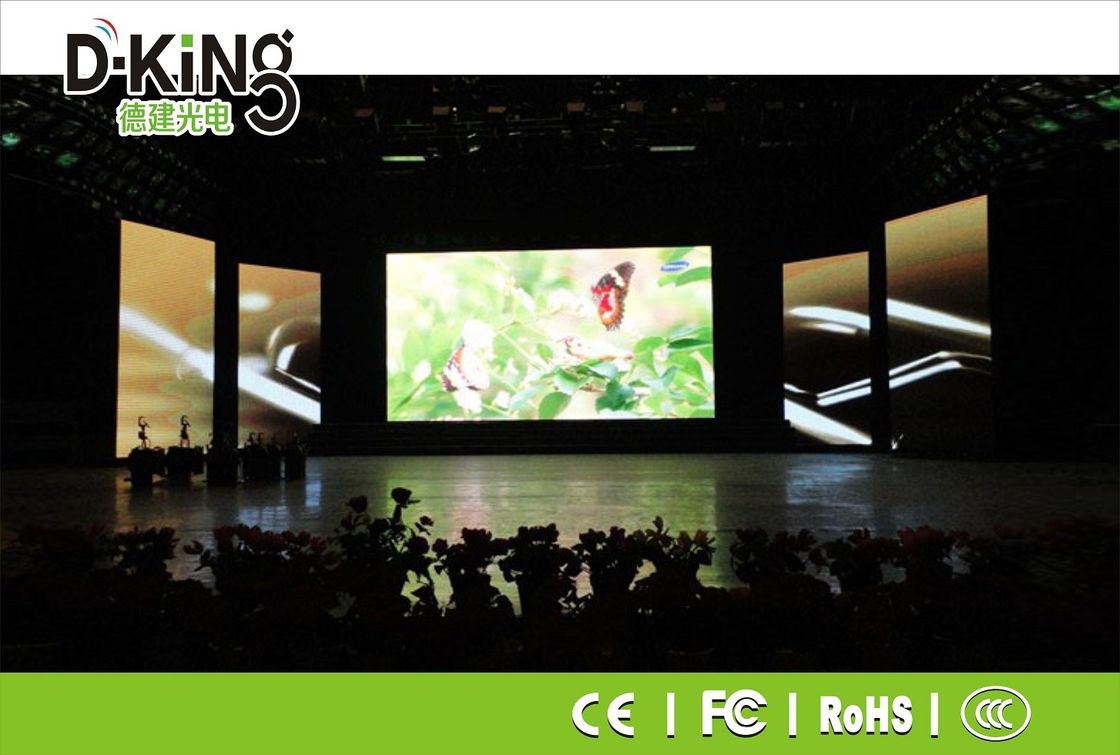

Application Picture:
