Product Details:
Payment & Shipping Terms:
|
| Item Name: | Stage Led Screen | Brightness: | 1600cd/m² |
|---|---|---|---|
| Pixel Composition: | 1R1G1B | Refresh Frame Frequency: | 60Hz |
| Optimum View Distance: | 6m-30m | Pixel No. On Unit Plate: | 32*16 |
| High Light: | led advertising displays,perimeter advertising boards |
||

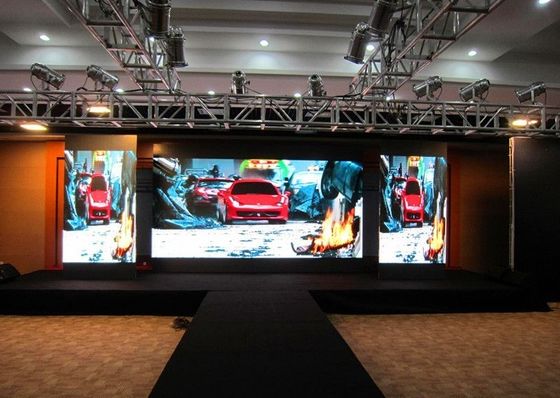

Full Color PH6 Indoor Stage Led Screen Display for Show / Performance
Quick Details:
1. Colors displayed: 1.07 billion
2. Driving modes: 1/8 scanning constant current driving and static constant current driving
3. Encapsulation methods: PLCC-4 SMD or CHIP 0603 SMD
4. Brightness: 1400 nits
5. Pixel pitch: 6mm
6. Pixel resolution: 27777 pixels/sqm
7. Blind spot rate: below 0.0001
Features and Application:
PH6 indoor full color stage led screen has beautiful appearance, light weight and vivid colors, and it can receive multiple video signals, thus very suitable for the application in small sized concert, small show, indoor sports event and indoor advertising show.
Technical Parameters of P6 Stage Led Screen:
| Model | P6 Stage Led Screen |
| Pixel Pitch | 6mm |
| Pixel Composition | 1R1G1B |
| Pixel Density | 27777/m² |
| Scanning method | 1/8 |
| Brightness | 1600cd//m² |
| Working Voltage | AC110V±10%, 50Hz-60 Hz |
| Average Power | 300W/m² |
| Max. Power | 900W/m² |
| Pixel No. on Unit Plate | 32*16 |
| Module Size | 192mm×96mm |
| Level up degree | <1mm |
| Viewable Distance | Normally 960mm×960mm×110mm (Can be customized) |
| Viewable Angle | Horizontal: 140°, Vertical: 140° |
| Screen Weight | 40kg/m² |
| Driving Method | Constant current |
| Display Color | 17M～69G colors |
| Display Color | Manual/Automatic/Remote |
| Grey Scale | 256~4096 |
| Refresh Frequency | 300 Hz~2440Hz |
| Refresh Frame Frequency | 60Hz |
| Display Content | TV picture, ads, video, live streaming video, picture and words |
| Display Mode | 640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640 |
| Control Method | Synchronous, asynchronous, remote and wireless |
| Transmission Distance | 5E cable≦130M Multimode fibre≦500M monomode fibre≦10KM |
| Transmission Distance | ≥72 hours |
| Service Life of Led | 100,000 hours |
| Mean Time Between Failure | ≥10,000 hours |
| Dispersed Incontrollable Point | <0.01% |
| Continuous Incontrollable Point | No |
| Protecting Technology | Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage. |
| Temperature of Use Environment | -20℃~+50℃ |
| Moisture of Use Environment | 10%~90% |
| Certifications | CE, ROHS |
Note: The technical parameters are just for reference, please contact us for details.
