P5mm Indoor Full Color Led Billboard Advertising Electronic 320mm × 160mm

Large Image : P5mm Indoor Full Color Led Billboard Advertising Electronic 320mm × 160mm

Product Details:

Place of Origin:	China
Brand Name:	D-King
Certification:	CE, RoHS
Model Number:	Electronic Church Signs

Payment & Shipping Terms:

Minimum Order Quantity:	1 SQM
Price:	Negotiable
Packaging Details:	Wooden box or flight case
Delivery Time:	10-20 days
Payment Terms:	T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability:	4000m²/month

Contact Now

Detailed Product Description

Item Name:	Electronic Church Signs	Brightness:	1500cd/m²
Average Power:	300W/m²	Refresh Frame Frequency:	60Hz
Screen Weight:	40 Kg/m²	Display Color:	17M~69G Colors
Highlight:	led advertising displays

P5mm Indoor Full Color Led Billboard Advertising Electronic 320mm × 160mm

Brief Introduction:

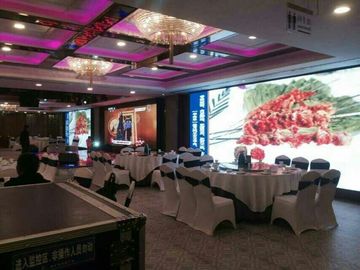

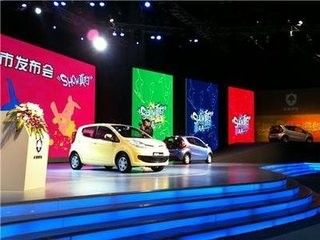

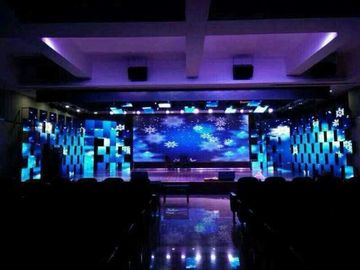

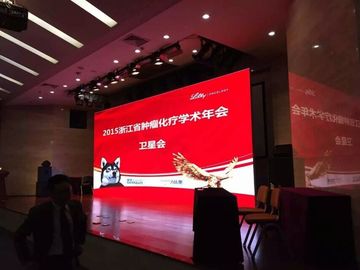

P5mm indoor electronic church signs can be used in the indoor environment that has not very high requirement for the brightness, such as municipal mansion, shopping mall, enterprise hall, exhibition hall, cinema and stage. As it has various real-time signals display functions and the fine picture effect brought by SMD encapsulation technology, it is usually used for indoor advertising and broadcasting importance news release and TV programs.

Application Ranges:

Sports, advertising, bank, security, bus station, dock, shopping mall, telecommunication, post, school, monitoring, restaurant, entertainment, enterprise, commercial performance as well as stage design.

Technical Parameters of P5 Electronic Church Signs:

Model	P5 Electronic Church Signs
Pixel Pitch	5mm
Pixel Composition	1R1G1B
LED Type	SMD3528
Pixel Density	40000/m²
Scanning method	1/16
Brightness	≥1500cd/m²
Working Voltage	AC110V±10%, 50Hz-60 Hz
Average Power	300W/m²
Max. Power	1000W/m²
Pixel No. on Unit Plate	64*32
Module Size	320mm×160mm
Level up degree	<1mm
Viewable Distance	≥5m
Viewable Angle	Horizontal: 140°, Vertical: 140°
Screen Weight	40kg/m²
Driving Method	Constant current
Display Color	17M~69G colors
Display Color	Manual/Automatic/Remote
Grey Scale	1024~4096
Refresh Frequency	300 Hz~2440Hz
Refresh Frame Frequency	60Hz
Display Content	TV picture, ads, video, live streaming video, picture and words
Display Mode	640×480, 800×600, 1024×768, 1280×960…1920×1200, 2048×640
Control Method	Synchronous, asynchronous, remote and wireless
Transmission Distance	5E cable≤130M Multimode fibre≤500M monomode fibre≤10KM
Transmission Distance	≥72 hours
Service Life of Led	100,000 hours
Mean Time Between Failure	≥10,000 hours
Dispersed Incontrollable Point	<0.01%
Continuous Incontrollable Point	No
Protecting Technology	Waterproof (Front size IP65, back side IP54), dustproof, antisepsis, antistatic, and has such protection functions of over current, short circuit over voltage and low voltage.
Temperature of Use Environment	-20℃~+50℃
Moisture of Use Environment	10%~90%
Certifications	CE, ROHS
