Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Fiber | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500*48mm | ||
| High Light: | led video display board,outdoor advertising led display screen |
||

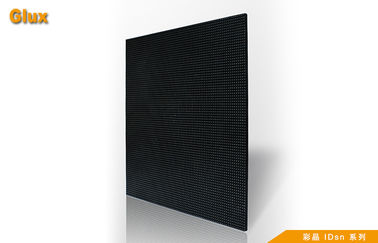

SMD 3528 Flexible P7.8 Indoor Full Color Advertising LED Display
Quick Detail:
1. Name:IDsn7C
2. Pixel Pitch:7.8mm
3. Brightness: >1200 nits
4. Long life span more than 75000H
5. Super thin Carbon fiber cabinet
6. Max vertical hanging 1400kg
Description:
1. Carbon Fiber materials for super light and thin structure.
2. Indoor LED: deepest blackness levels and light absorbing techniques
3. Angled edge structure for max 90 degree curved assembly
4. Glux fast-assembly mechanism= compatible to all other glux LED Screens
5. Module measurements:0.5*0.5m
Applicantion:
Sports, Advertising, entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Specifications:
|
Glux LED Display IDsn Series |
IDsn7C |
|
Pixel Pitch(mm) |
7.8 |
|
Pixel Density(dots/m2) |
16384 |
|
Brightness(cd/m2) |
>1200 |
|
Color Temperature(after calibration)K |
6500 |
|
Module Size(W*H*D)(mm) |
500*500*48 |
|
Weight(kg/Panel) |
3.3 |
|
Weight(kg/m2) |
13.2 |
|
LED Type |
3528 Black |
|
LED Chip |
Epistar |
|
Horizontal/Vertical Viewing Angle(º) |
H160º/V160º |
|
Recommended Viewing Distance(m) |
8 |
|
Contrast |
2000:1 |
|
Refresh Rate(Hz) |
2400 |
|
Grey Scale(bit) |
R/G/B 16 |
|
Frame Rate(Hz) |
50/60 |
|
Life Time(H) |
≥75000 |
|
Protection |
Indoor |
|
Power Supply |
Singular Power Supply |
| Working Voltage(V) | AC 110~240 |
|
Max Power Consumption(W/M2) |
540 |
|
Avr Power Consumption (W/M2) |
180 |
|
Working Temperature |
-25-60℃ |
|
Working Humidity |
10%-95% |
|
Driving Mode |
1/4 |
|
Cabinet Material |
Carbon Fiber |
|
Video Signal Input Interface |
DVI/HDMI/HDSDI |
| Certification | CE/FCC/TUV |
|
Max Hanging(Vertical) |
1400kg |
Feature Advantage & Competitive Advantage:
1.Black panel LEDs and a light absorbing mask
2.Usage Status Display
3.Protective Buffer
4.NEUTRIK Connector & LAPP Cable (made in Germany)
5.Test Button
6.45 Degree Curved Frame for 90 Degree Installation
