Ultra slim P3 Extrusion Aluminum Indoor LED Display in Conference Room
Quick Detail:
1, LED Source: SMD2121

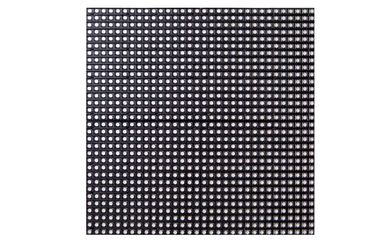

2, Module Size: 240mm x 240mm;

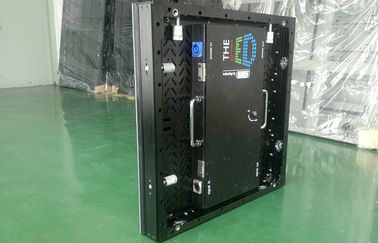

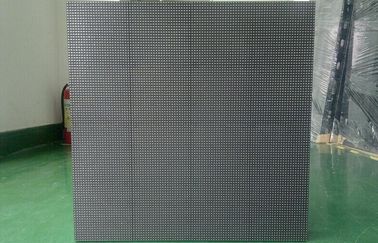

3, Cabinet Size: 480mm x 480mm x 65mm;
4, Cabinet Weight: 6.5kg
5, Cabinet Material: Extrusion aluminum
6, Installation Method: Hanging up or on stand
Description:
1. High definition,111111pixels/㎡ enables P3 an real HD indoor LED screen;
2. High and stable quality.P3 indoor LED panel realize good heat dissipation to insure stable high quality;
3. Ultra slim cabinet design. LED cabinet is only 65mm;
4. Ultra light weight design.One LED cabinet weight is about6.5kg,very easy for one people to assembly and dismantle;
5. Fast lockers equipped to insure tightly and seamless connection between LED panels.
6. P3 HD indoor LED screen is widely used for conference room,shopping mall indoor advertising,luxury stores etc.

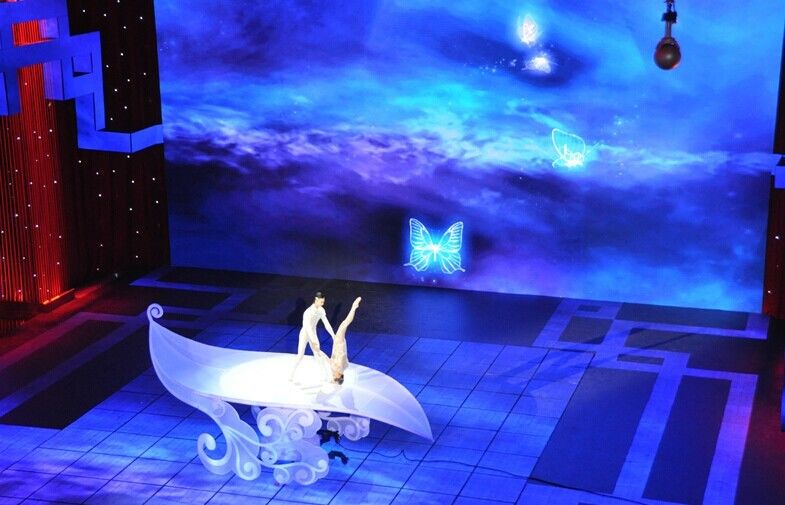

Applications:
Shopping mall Indoor Advertising LED Display
TV studio LED Display
Church Indoor LED Display
Conference Indoor LED Screen
Indoor Stadium LED Display
Museum Indoor LED Display
Specifications :
| LED MODULE PARAMETER |
| Pixel pitch (mm) |
3 |
| Pixel configuration |
3 in 1 |
| Encapsulation |
SMD3528 |
| Colors matches |
6:3:1 |
| Module resolution (pixels) |
80 x 80 |
| Module pixel |
6400 |
| Module size (mm) |
240 x 240 |
| LED CABINET SPECIFICATION |
| Cabinet size (mm) |
480 x 480 x 65 |
| Cabinet resolution (pixels) |
160 x 160 |
| Cabinet pixels (pixels) |
25600 |
| Cabinet material |
Aluminum/Steel |
| Cabinet weight (kg) |
6.5kg |
| LED DISPLAY SPECIFICATION |
| Pixel density(pixel/m2) |
111111 |
| Brightness(cd/m2) |
≥2000 (adjustable) |
| Brightness adjusted |
100 grade by software or by Auto-optic induced |
| View angle |
Horizontal 140°; Vertical 140° |
| Best viewing distance (m) |
≥2.5m |
| Communication distance(m) |
<100meter by Internet Cable(without Relay; Multi mode fiber cable ＜ 500m; Single mode
fiber cable ＜ 20km |
| Display work method |
1/16 Scan |
| LED driving method |
Constant driving current |
| Color contrast ratio |
1800:1 |
| Gray Grade |
16bit |
| Display Color |
439, 804, 651, 110 |
| Refresh Frequency (Hz) |
≥600 |
| Picture display method |
Intellective control technology , test-itself technology , correct technology, Synchronization
Control |
| Input signal |
DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating |
WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level |
IP44 |
| Working temperature(ºC) |
-20～+60 |
| Stored temperature (ºC) |
-30～+80 |
| Operation humidity(RH) |
0-95% |
| Display Lifetime(hours) |
10 years or more( natural environment)
100000 hours( ideal environment) |
| Maintenance |
Rear side |
| Working Voltage |
AC110 / AC220V±10% 47～63HZ |
| Power consumption |
Max: 940W/㎡ ; Ave:400W/㎡ |
| Out of controlled dot |
≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one) |
Competitive advantages:
1. Extrusion aluminum makes indoor advertising LED display more stable structure;
2. True black LED makes advertising indoor LED display high contrast ratio at 5000:1;
3. High quality Sum 2032 IC guarantee a low brightness and high grey scale for real color and comfortable indoor LED screen effect;
4. Ultra thin power supply,noise less and good heat dissipation;
