P10 Outdoor Advertising LED Display , 6500 nits Full Color LED Screen

Large Image : P10 Outdoor Advertising LED Display , 6500 nits Full Color LED Screen

Product Details:

Place of Origin:	China
Brand Name:	Dreamway
Certification:	CE,ROHS
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	Plywood case
Delivery Time:	20 days after receiving the deposit
Payment Terms:	T/T, Western Union
Supply Ability:	2000sq.m/Month

Contact Now

Detailed Product Description

Highlight:	outdoor full color led display

P10 Outdoor Advertising LED Display , 6500 nits Full Color LED Screen

Quick Detail:

1. 16×16 dots LED module;
2. 160×160 mm module size;
3. 800×800 mm and 800×640 mm cabinet size;
4. W 2.4 × H 1.44 m screen dimension;
5. All EPISTAR LED chip;
6. 100° viewing angle.

Detail Description:

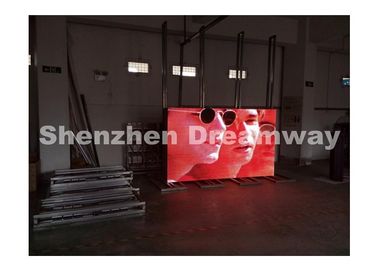

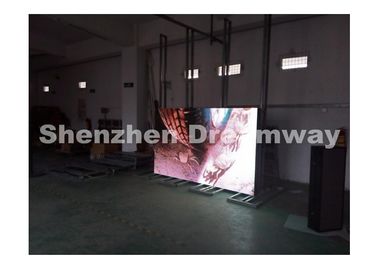

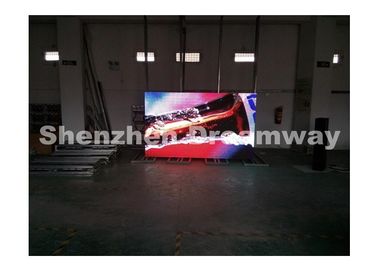

The screen size is with 2.4 by 1.44 m, 3 by 2 pcs cabinets;
The best viewing angle is 100°;
It is packed by plywood case.

Application:

This outdoor advertising LED display is installed on the wall for video advertising.

Specifications:

Pixel Pitch	10 mm
LED Composition	1R1G1B
LED Type	DIP346
Resolution	10,000 dots/sq.m
LED Chip	EPISTAR
LED Module Size	W 160 × H 160 mm

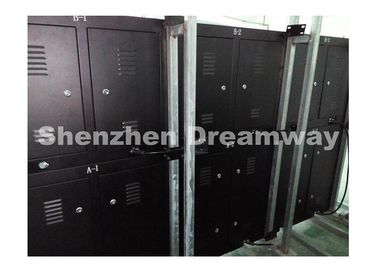

Cabinet Size	W 800 × H 640 × D 150 mm & W 800 × H 800 × D 150 mm
Cabinet Color	Black
Cabinet Material	Steel waterproof cabinet with back door
Drive Method	1/4 scan constant current
Brightness	≥6,500 nits/sq.m
Refresh Rate	≥800Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Span	＞100,000 hours
Power Supply	Chuanglian brand, 220V / 60HZ
Controller	Shanghai Xixun K11
Control Method	Asynchronous control with WIFI
Package	Plywood case
