Product Details:
Payment & Shipping Terms:
|
| Brightness: | >1,300cd/ ㎡ | Moduel Size: | 244*122mm |
|---|---|---|---|
| Pixel Density: | 17,222 Pixels/ ㎡ | Pixels: | 7.62mm |
| Display Color: | 16.7million | Gray Scale: | 8bits Input, Correction With 14bits |
| LED Configuration: | 1R1G1B 3-IN-1 SMD | Tube Chip Color: | Full Color |
| Highlight: | high resolution led display |
||

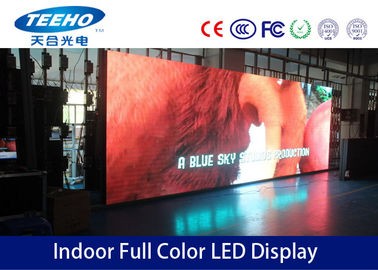

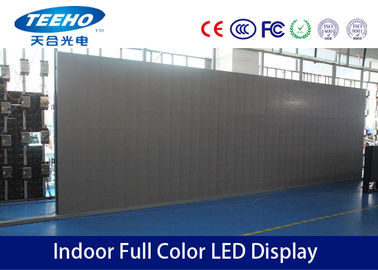

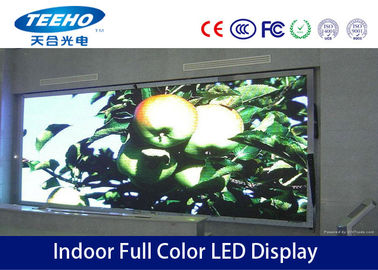

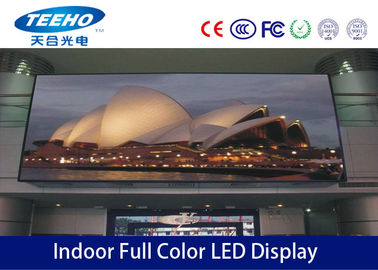

Rental Full Color Indoor Advertising LED Display Screen 1R1G1B P7.62 , 1000Hz
Quick Detail:
1. High&low brightness recession rate;
2. Pure&rich colors;
3. Unique mechanical structure design;
4.Light weight cabinet & Fast dismantle&installation;
Specifications:
|
Part Number |
Teeho-p7.62-16s |
|
Resolution |
32(H)×16(V) |
|
Pixel Pitch |
7.62mm |
|
LED Configuration |
1R1G1B 3-IN-1 SMD |
|
Pixel Density |
17,222 pixels/ ㎡ |
|
Module Size |
244*122mm |
|
Driving IC |
MBI5024 |
|
Driving Method |
1/16 Scan, Constant Current |
|
Cabinet Weight |
42kg/sq.m. |
|
Mechanical Ratings |
|
|
Hanging Weight Support |
2T |
|
Surface Flatness |
Gap<0.5mm |
|
Optical Ratings |
|
|
Brightness |
>1,300cd/ ㎡ |
|
View Angle |
130°/120° |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display COLOR |
16.7M |
|
Brightness Adjustment |
0~100% |
|
Power Supply |
|
|
Operation Power |
90~260V 50~60Hz |
|
Max. Power Consumption |
800W/ ㎡ |
|
Average Power Consumption |
200W/ ㎡ |
|
Control System |
|
|
Control Mode |
Synchronous display with control PC by DVI |
|
Frame Update Frequency |
60~85Hz |
|
Screen Refresh Frequency |
300~1000Hz |
|
Gamma Correction |
-5.0~+5.0 |
|
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
|
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
|
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
|
Brightness Correction |
Pixel, Module, Cabinet |
|
Environmental |
|
|
Operating Temperature |
-20°~+60° |
|
Operating Humidity |
10~95% RH |
|
Operating Life |
100,000hours |
|
MTBF |
5000hours |
|
Protection Level |
~ |
|
Out of Control Rate |
<0.02% |
Description:
1. Wide application field & short ROI time;
2. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment;
3. Long-term Brightness: 7000-nit brightness (for outdoor full color)(2000 nits brightness for indoor full color ) capacity throughout product lifetime of the LED display screen;
4. Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system;
5. Convenient Servicing: Front and rear cabinet access makes the maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Applications:
Shopping Malls
Indoor advertising
Pub&club
Music Venues and Concerts
Car Shows
Airport
Competitive Advantage:
1. High resolution and high frequency dynamic image;
2. Long life span and stable work, waterproof;
3. Easy repair &maintenance;
4. Reliable quality, really high cost-effective.
![]()
![]()
