P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm
Melton--Outdoor led display spec.pdf

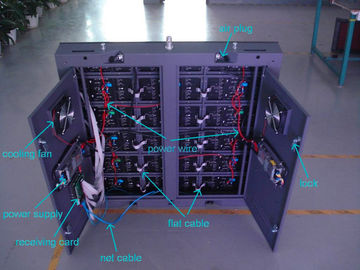

1)Outdoor led video System structure
2)outdoor led video Module
|
Module Size(W * H)
|
160mm*160mm
|
Pixel Configeration
|
1R,1G,1B
|
|
Pixel Pitch
|
10mm
|
Resolution(W*H)
|
16dots*16dots
|
|
Pixel Density
|
10000 dot / m2
|
Driving Method
|
1/4 scan Current
|
3)led video cabinet
|
Cabinet Size(W * H)
|
960mm*960mm
|
Module Qty
|
36pcs
|
|
Cabinet Resolution(W * H)
|
96dots*96dots
|
Cabinet Pixel
|
9216
|
|
Weight
|
50kg/pc
|
Area
|
0.9216(m2)
|
|
Avarage Power Consumption
|
200W/m2
|
Max Consumption
|
600W
|
4)Program diagram
5)Outdoor led video technical parameter
| Product model number |
Mled-PH10-864 |
| 1.Pixel |
| Pixel L ED |
348 |
| Pixel Configuration |
1 R, 1G , 1B |
| Wave length ( nm ) |
R: 800-1000 , G:2040-2450, B: 360-430 |
| Pixels Pitch ( mm ) |
10 |
| 2 . Module |
| Module Size ( mm ) |
160 * 160 * 20 |
| Module Pixels (dot) |
16 * 16 |
| 3.Unit box |
| Module quantities in a unit box |
6 (L) * 6 ( H ) |
| Unit box size ( mm ) |
960 (L) * 960 (H) * 150 |
| Unit box Pixels ( dot ) |
96 * 96 |
| Unit box material |
Aluminum or Iron |
| Unit box weight (kg) |
Aluminum : 40 or Iron : 55 |
| 4.Packaging |
| Packing Way |
Two unit boxes packed into one |
| Packing box material |
Wooden case or Flight box |
| 5.electricity parameter |
| Pixel density (dots/ m2 ) |
10000 |
| White Balance Brightness ( cd/m2 ) |
≥7500 (adjustable) |
| Color temperature ( K ) |
5000-9500 (choice by user) |
| Brightness Adjusted |
100 grade by software or by Auto-optic induced. |
| View Angel |
Horizontal 120 ° ; Vertical 70 ° |
| Best viewing distance ( m ) |
16-150 |
| Communication distance ( m ) |
Internet Wire : 120 Fiber Cable : 1000 |
| Screen work Method |
1/4 scan |
| LED driving method |
Constant driving current |
| Gray Grades |
16384 levels for each color |
| Display Color |
4 , 398 , 046 , 511 , 104 |
| Refresh Frequency ( Hz ) |
≥ 800 |
| Picture display method |
Dots to dots display synchronized with CRT |
| Signal interface |
DVI |
| Input signal |
Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
| Display format |
800 * 600 , 1024 * 768 , 1280 * 1024 |
| Software |
Support windows series system |
| Protection grades |
IP 65 |
| Working temperature (ºC ) |
-10 +50 |
| Humidity ( RH ) |
Up to 95 |
| Stored temperature ( ºC) |
-30 +70 |
| Screen Lifetime(hours) |
≥100, 000 |
| Out of controlled dots |
≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one) |
| Whole display flatnes |
Less than 1mm Juncture |
| Maintance way |
Back-maintained or front-maintained, |
| modules displaced |
| Switch power supply |
Switch power supply (include CE/GS or UL/CSA certificate)
110V/60HZ , 220V/50HZ
|
| Power Consumption ( w /m 2 ) |
Max : 750 , Average: ≥ 300 |
Specifications
1.led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving
5.CE.RoHS
High Brightness Led Outdoor Display Board P10 Full Color Feature

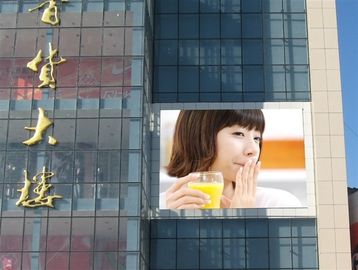

In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.
<Super brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%
<High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
<Refresh rate is up to 4,200Hz, completely flickering-free for live video
<Proprietary image processing produces sharp, brilliant images unmatched by industry competition
<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away
<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use
Competitive Advantage:
1, High quality;
2, Good price;
3, Good 24hours service.
Corrugated carton Package:
This is also for led module,40pcs/carton,Carton Size:66x36x36cm
Plywood case package:
In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display
3pcs cabinet pack into one case,this is for outdoor fixed installation led display
Both for shopping by air and shipping by sea
Flight case package:
9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
