Product Details:
Payment & Shipping Terms:
|
| Screen Dimension: | As You Request Or 3x2m Or More Bigger | Scan Method::: | 1/8 Scan |
|---|---|---|---|
| Module Size: | 192x192mm | LED Type: | SMD3535 |
| Grey Level: | 16bits | Cabinets Size: | 960X960mm/1024X768 |
| Brightniess: | 7000nits | View Distance: | 5meter |
| Led Chip:: | Epistar | Driving IC:: | MBI5024 |
| High Light: | outdoor advertising led display screen,advertising led display |
||

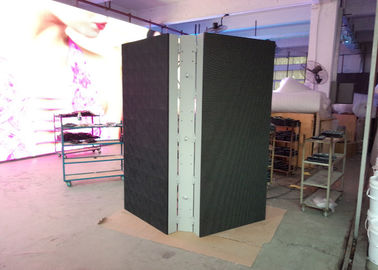

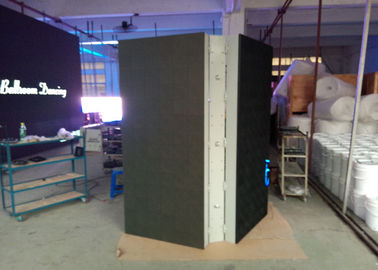

Dual Sides Outdoor Advertising LED Display Front Access P6 P8 P10 LED Screen
Automatically adjust the screen brightness by the light-sensor control system, power saved and environmentally friendly
High refresh rate and frame rate, vivid pictures
Change the advertisements at any time
Online power backup to ensure normal work
Remote networked control
Easy for installation,high transparency, low wind-resistance and waterproof
widely used in building showing
Technical Specification:
|
Pitch/mm |
P5 |
P6 |
P8 |
P10 |
P16 |
|
Module size/mm |
160x160 |
192x96 |
256x128 |
160x160 |
256x256 |
|
Density of pixel/(dots/m2) |
40,000 |
27,777 |
15,625 |
10,000 |
3,906 |
|
Pixel composition |
SMD 3 in 1 |
SMD 3 in 1 |
1R1G1B |
1R1G1B |
1R1G1B |
|
Led encapsulation |
SMD2727 |
SMD3535 |
SMD3535 |
DIP346/SMD3535 |
DIP346 |
|
Optimum viewing distance |
5-16m |
6-20m |
≥6 |
≥10 |
≥15 |
|
View angle / ° |
140 H,120 V |
140 H,120 V |
140H,120V |
110 H,60 V |
110 H,60 V |
|
Average power consumption/W/M2 |
1,000 |
900 |
500 |
450 |
350 |
|
Size of cabinet/mm |
960X960 |
960X960 |
1024X768 |
960X960 |
1024X1024 |
|
Driving method |
1/8 scan constant current |
1/8 scan constant current |
1/4 scan constant current |
1/4 scan constant current |
Static constant current |
|
Refresh rate Hz/S |
≥1200 |
≥1200 |
≥1200 |
≥1200 |
≥1200 |
|
Luminance of white balance |
≥7000 nits |
≥6500 nits |
≥6000 nits |
≥7000 nits |
≥7000 nits |
|
Operation of Environmental Temperature/℃ |
below 30 to above 50 |
||||
|
IP rating |
Front,IP65;Rear,IP43 |
||||
|
Working voltage |
110-220 VAC/+/- 10% |
||||
|
Grey scale/color |
displaying colors≥16.7M(synchronized) |
||||
|
Brightness adjustment |
4096 levels of each color(manually),100 levels of each color(automatically) |
||||
|
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
||||
|
Control system |
Linsn / Nova(sending card,receiving cards and Hubs) |
||||
|
Average of non-failure life |
>50,00h |
||||
|
Life span |
>100,000h |
||||
|
Functionless dot rate |
<0.0001 |
||||
Company Information:
Founded in 2008, Eachinled is located in Shenzhen, China, has branch offices in Russia, Indonesia and Canada. Our selfowned photoelectric Industrial Park have16,500.00 Square meters, 3 LED screen production lines, specializing in researching and producing led display
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor 5mm/6MM/8MM/10MM/16MM)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar Or Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
