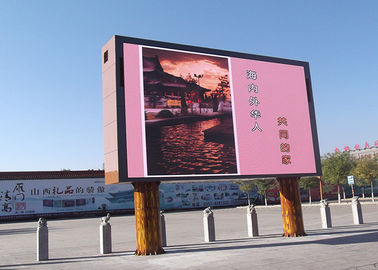

IP65 Outdoor RGB static Advertising LED Display P20 digital board in playground

Large Image : IP65 Outdoor RGB static Advertising LED Display P20 digital board in playground

Product Details:

Place of Origin:	Shenzhen ,China
Brand Name:	LanGao
Certification:	CE/ROHS/FCC/UL/ISO/3C
Model Number:	LGP20

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm. / 1 piece
Packaging Details:	Plywood or Flight Case
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C, ,Paypal

Contact Now

Detailed Product Description

Usage:	Outdoor	Tube Chip Color::	Full Color
Display Function:	Video	Pixels::	20mm
Brightness::	6000 To 8000cd/sqm	Protection Level::	IP65
High Light:	led advertising billboards , led display board for advertising

CE / ROHS / FCC P20 Outdoor RGB static Advertising LED Display digital board in playground

P20 Advertising LED Display is a multimedia hi-tech product that blendedoptical, electronic and acoustic signal processing technologies .

1. Convenient to install and disassemble
Our cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlocks, as well as external signal and power sockets.

2. Automatic backup system
Our LED Displays could utilize two computers to ensure interruption-free display of images and videos. For instance, if one unit was to shutdown due to technical issues, the other unit acts as a back-up solution automatically.

3. All-weather designs
With an IP 65 rating, our cabinets offer ventilation and protection from rain or water damage.

4. High refresh rates
With high refresh rates, our products can display flicker-free video images – including live video feeds.

Specifications

No.	Specifications
1.	Part No.	P20 outdoor led display
2.	LED chip	Taiwan/Silan/Cree/Cree Cotco
3.	Physical Pixel Pitch	20mm
4.	Physical Pixel Density	2500dots/m2
5.	Pixel composition	2Red, 1Green,1Blue
6.	Moduel Size	320*160mm
7.	Moduel resolution	16*8dots
8.	Cabinet thickness	< 170 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 6500 nits
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥120°, Vertical : ≥ 45°
13.	Viewing distance	15m -300m
14.	Soft Rubber Mask	To protect player and LED display itself .
15.	Scan frequency	≥600 Hz
16.	Video Frame Rate	≥150 fps
17.	Color temperature	6500°K to 9500°K adjustable
18.	Control method	Controlled by PC, synchronous display
19.	Life span( half brightness)	≥100,000 hours
20.	Weight	70Kg /sqm
21.	IP rate	IP65 ( front side and rear side)
22.	Average power consumption	400W/sqm
23.	Peak power consumption	800W/sqm
24.	Input voltage	AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25.	Operating Environment	Temperature:-20+60 Humidity:10%95%RH
26.	Operating system	Windows 98/2000/ME/XP
27.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI

Features:

Available for connection to an external scanner, and accepting various pictures, graphs and handwriting inputs.
Accepting video signal (TV, VCR, DVD), and showing dynamic images, and it also can show graphs andanimations.
The control computer can act as a workstation on network, and read real-time data from specified computer, and show them on its display.
Various methods for images display, and easy replacement for arranged programs whenever (including play sequence, time length, etc.)
