Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.9mm | LED Lamp: | Black 3-in-1 SMD |
|---|---|---|---|
| Contrast: | 4000:1 | Brightness: | >800 |
| Refresh Rate: | >2500 | Cabinet Size: | 400*300*66mm (W*H*D) |
| Material: | Die Casting Aluminum | LED Density: | 270,400 Pixels / Sqm |
| High Light: | advertising digital signage,advertising LED sign |
||

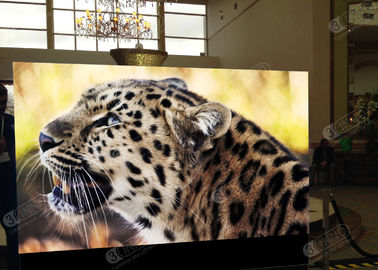

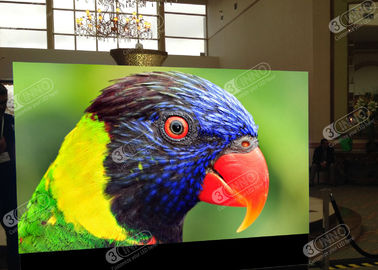

High Resolution P1.9mm Black LED Small Pitch Digital Sign Control Room LED Video Wall
Main Feature:
Lightweight, trendy , bezel-free, high precision and reliable high-tech display
Good heat dissipation, fine looking and convenient installation way.
Die-casting aluminum design and CNC processing keep 0.01mm accuracy
Wide color range, excellent color uniformity, no brick shadow, seamless image of real bezel-free
redundancy design of double power supply and signal converter guarantee zero failure rate specially
in important occasions like broadcasting studio, live shows,etc.
Application:

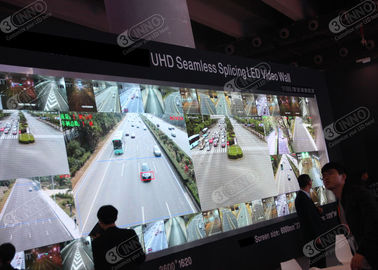

Perfectly used for control room , show room, TV studio, conferece room , brand shops, banks, shopping mall, ,etc. to replace traditional DLP, LCD , projectors.
Specification:
| Small Pitch LED Digital Signage | Unit | SP-1.9 | |||
|---|---|---|---|---|---|
| Pixel pitch | mm | 1.923 | |||
| Pixel density | pixels/㎡ | 270,400 | |||
| Pixel configuration | ﹣ | Black 3-in-1 SMD | |||
| Lamp viewing angle(H/V) | degree | 160/140 | |||
| Contrast | ﹣ | 4000:1 | |||
| Brightness | cd/㎡ | ≧800 | |||
| Refresh rate | Hz | ≧2500 | |||
| Processing | bit/color | 14 | |||
| Colors | trillion | 4.39 | |||
| Color temperature | K | 3200~9300 adjustable | |||
| Color uniformity | ﹣ | Within±0.003 Cx, Cy | |||
| Brightness uniformity | ﹣ | ≧97% | |||
| Lamp drivering mode | ﹣ | Constant current driving | |||
| Control system | ﹣ | DVI synchronous system | |||
| Source compatibility with VP | ﹣ | CVBS,YUV, DVI,VGA,S-Video,HDMI,SDI,HDSDI,etc. | |||
| Operating power | VAC,Hz | 100-240,50/60 | |||
| Power consumption(max/ave) | W/㎡ | 900/300 | |||
| Operating temperature | ℃ | ﹣10 ~40 | |||
| Operating humidity | RH | 10%~80% | |||
| Cabinet size(W×HxD) | mm | 400*300*66 | |||
| Cabinet material | ﹣ | Die casting aluminum | |||
| Serviceability | ﹣ | Rear | |||
| Installation | ﹣ | Standing / Hanging | |||
| IP rating | ﹣ | IP30 | |||
| Weight | kg/cabinet | 4.6 | |||
| Weight | lbs | 10 | |||
| Package | Flight case / Wooden box | ||||
| Standard | ﹣ | CE,Rohs,FCC, ETL | |||
Our Service :
Your any inquiry related to our products or price will be replied in 24hrs.
Top quality, reasonable price, timely and good service to make win-win cooperation.
Intellectual property protection for your ideas of design and all your private information
Solo-agency available for your unique design and some our current models
OEM&ODM,any your customized lighting, we can help you to design and put into production.
Warranty is up to 2 years, after-sales service time is 24 hoursx7 days.
