Product Details:
Payment & Shipping Terms:
|
| Touch Screen Function: | Infrared Touch, Capacitive Touch, Pro-Cap Touch Film | Installation: | Landscape Or Portrait |
|---|---|---|---|
| Remote Control: | Yes | Size Customization: | Supported |
| Color: | Black , White And Customized | Warranty: | 1 Year |
| High Light: | touch screen displays,digital information kiosk |
||

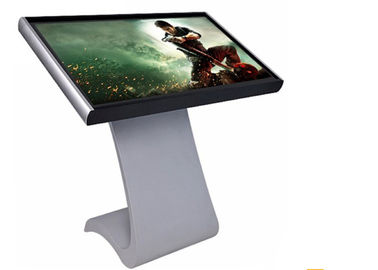

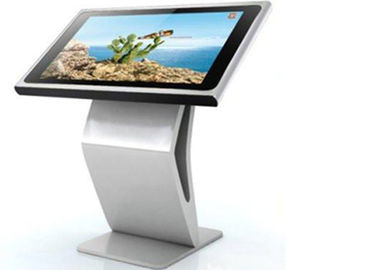

TFT Indoor Table Touch Screen Kiosk Interactive Digital Signage
Description:
High reaction speed & precision infrared touch frame makes user experience like a hug tablet
Upward screen position leads comfortable to write
Stable base ensure kiosk ensure machine will not shake during writing.
General Specifications:
Panel Specifications | ||
Items | Specification | Unit |
Panel Size | 42 | inch |
Panel Type | TFT-LCD | / |
Active Display Area | 927.94 (H) x 521.96 (V) | mm |
Display Colors | 8 bit, 16.7 Million | colors |
Number of Pixels | 1920 x 1080 | pixel |
Luminance of White | 350 (Typ.) | cd/m2 |
Contrast | 1400:1 (Typ.) | / |
Viewing Angle | ±178 (wide) | degree |
Aspect Ratio | 16:9 | / |
Response Time | 6 (Typ.) | m-sec |
Life Time | 60,000 | hours |
PC Specifications | ||
Parts | Specification | |
Processor | Intel i3 3240 (3.4GHz, dual core) | |
RAM | 4G DDR3 (Kingston) | |
Hard Disk | 500G 5400rpm (Seagate) | |
Mother Chipset | Intel H61 chipset, Sandy Bridge | |
Video Chipset | Intel HD Graphics, Shared memory | |
Audio Chipset | Intel HD audio | |
I/O ports | 4xUSB 2.0, 1xRJ-45, 1x3.5mm jack plug, 1xHDMI, 1xVGA, 1xDC 12V | |
Internet | Default: RJ-45 and Wi-Fi. Optional: 3G | |
Loudspeaker | 2 x 8Ω/ 5W | |
OS | Linux, Windows XP, Vista, 7/8 (32 bit) / extra cost for original version | |
OS Language | English (default) | |
Touch Performance | ||
Touch Screen Type | Infrared | |
Touch Condition | Finger, touch pen or anything un-transparent | |
Touch Points | 2 points. Optional: 4, 8, 16, 32 points | |
Interpolation Resolution | 32767 x 32767 | |
Response Time | ≤ 20m-sec | |
Min Touch Diameter | 5mm | |
Touch Accuracy | ±2mm for 90% area | |
Platform | 4mm thickness tempered glass | |
Appearance | ||
Color | White (default), black and customized | |
Case | 2mm cold-rolled sheet | |
Paint Process | 170°~ 180°Baking finish | |
Application | Floor stand | |
Others | ||
Power Input | AC 100 ~ 240V, 50/60 Hz | |
Max. Power Consumption | 122KWh | |
Standby Power Consumption | ＜5KWh | |
IP Code | IP20 | |
Working Temperature | 0 ~ 40° | |
Storage Temperature | -20 ~ 55° | |
Working Humidity | 20% ~ 80% | |
Storage Humidity | 10% ~ 90% | |
Unit Package | PE film + Foam corner protector + Carton | |
Export Package | Export wooden packing | |
Accessories | Driver CD | |
Warranty | 1 Year | |
Main functions:
1. Full HD 1920*1080, LED backlight screen, support display models of 16:9.
2. Multi-groups of on/off time schedule could be setted remotely and control the display through Internet.
3. Display in random split screens, play videos in multi-windows, play different contents in different windows.
4. Compatible multimedia file formats: MPEG1/2/4, AVI, RM,WMV,DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc.
5. Scrolling texts in English and Chinese version are available, various display modes for titles (Fonts and colors of letters, background clolors, the relative attributes of rolling dirctions in horizontal or vertical could be adjusted).
6. Support media contents combine by videos, pictures, flashes, marquee etc.
7. Functions of controlling the playlist, displaying in order the programs and playing circularly.
8. Support uploading files through Wifi and cable network.
9. Intelligent system for arranging and playing programs, easy and fast operation.
10. Able to adjust the volume and switch on/off the units by remote controller.
11. Support displaying in dual screens, play different video files and audio contents in these two screens.
