Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 20 Inch | Pixel: | 1920x1080 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Brightness: | 700cd/m^2 |
| Input Signal: | VGA/DVI | Viewing Angle: | 170(H)/160(V) |
| Monitor Type: | Touch Screen | ||
| High Light: | interactive digital signage display,lcd digital signage display |
||

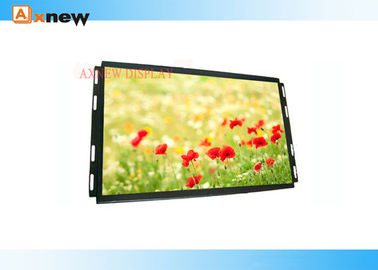

High Brightness Outdoor LCD Monitor wide viewing angle For Digital Signage
Wide screen 20 inch 1920x1080 FULL HD high performance LED monitor with VGA DVI input slim and thin design with fixing easily used for Gaming , Automatic equipments, Advertising , vending embedded system,Kiosks application etc.
Quick Details:
|
Model: AXD-20OPN1P1-V1 |
Screen Size:20’’ |
|
Screen format: 16:9 |
Display Resolution(pixel):1920x1080 |
|
Contrast Ratio:1000:1 |
Brightness:700cd/m^2 |
|
Storage temperature : -10℃~70℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V /DC 12V |
Product status: Stock |
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. 170/160 wide viewing angle with high performance
5. VGA DVI interfaces ; touch screen options if requested
6. 20 inch open frame monitor for application control , advertising player ,campus and industrial
terminals etc
|
Display Specifications |
|
|
Display |
20 " Color LED Monitor |
|
Model Name |
AXD-20OPN1P1-VH1 |
|
Active Display Area (mm) |
442.8 (H) x 249.1 (V) |
|
Pixel Pitch (mm) |
0.09225 (H) x 0.27675 (V) |
|
Resolution (Pixel) |
1600X900 |
|
Brightness (CD/m^2) |
700cd/m^2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (CR >=10) |
85/85/75/85 |
|
Power consumption |
28.5 W typical, normal operation |
|
Touch Screen |
Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W Adapter |
|
Mechanical Specifications |
|
|
Construction |
Open frame steel metal material ,black color |
|
Dimensions |
496.2x 285.7x 45.0(mm) |
|
Mounting |
Embedded ,right and left ; VESA 75x75(100x100) Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-10~70℃ |
|
Storage Temperature |
-10~70℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
20.0” Sunlight Readable LED Monitor with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 20 inch Touch Screen Digital Signage ; Packed in 5 pieces/carton with protection foam |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
