Product Details:
Payment & Shipping Terms:
|
| Screen Size: | 10.4 Inch | Pixel: | 800x600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 300cd/m^2 |
| Input Signal: | VGA/DVI | Viewing Angle: | 150(H)/120(V) |
| Monitor Type: | 10.4 '' Touch Screen Display | ||
| High Light: | digital signage monitor,lcd digital signage display |
||

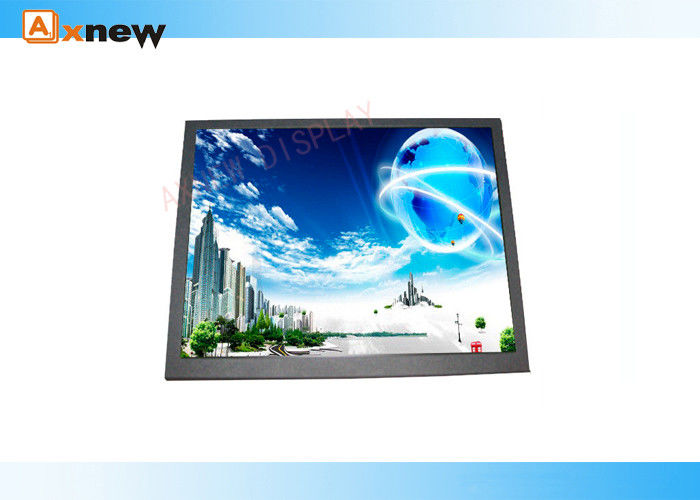

10.4 inch Advertising Touch Screen 4:3 VGA DVI LED Backlight View For Interactive
Quick Details:
|
Model:AXD-10OPN1P2-TV1 |
Screen Size:10.4’’ |
|
Screen format: 4:3 |
Display Resolution(pixel):800x600 |
|
Contrast Ratio:500:1 |
Brightness:300cd/m^2 |
|
Storage temperature : -20℃~70℃ |
Input signal: VGA DVI |
|
Power Input: AC100~240 V /DC 12V |
Product status: In production |
10.4 inch open frame monitor with VGA DVI input and LED backlight( No touch)
used for Automatic equipments, Advertising , vending embedded system etc . Resistive Touch
optional for your needs.
|
Features and Advantages |
|
1.New and A grade perfect panels with stable supply |
|
2. industrial control board supports the displays working 24 hours |
|
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment |
|
4.Open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen |
|
5. VGA DVI interfaces ;USB touch interface options if needed |
|
6. 10.4 inch open frame monitor for application control , advertising player ,campus and industrial terminals etc |
Specifications datasheet
|
LCD monitor information |
|
|
Model Number |
AXD-10OPN1P2-TV1( DVI/VGA) |
|
10.4’’ Open frame LCD Monitor |
|
|
Type |
10.4 “ TFT Active Matrix LCD with LED Backlight |
|
Active Display Area(mm) |
211.2 (H)x158.4(V) |
|
Pixel Pitch(mm) |
0.264(H)x0.264(V) |
|
Resolution |
800 x 600, up to 1024X768 |
|
Contrast Ratio |
500:1 (typ.) |
|
Display Color |
16.2 M colors |
|
Brightness |
300(Typ) |
|
Viewing Angles |
150(H);120(V) |
|
Response Time |
8ms |
|
Environmental Temperature |
|
|
Operating Temperature |
-10℃～60℃ |
|
Storage Temperature |
-20℃～70℃ |
|
Signal Input |
|
|
PC |
RGB analog VGA; DVI-D |
|
RGB Frequency |
H:31.5~38kHz, V:50~60Hz |
|
Power Specification |
|
|
Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
|
3.3W typical, normal operation |
|
|
Touch Screen Optional |
Resistive Touch; Capacitive Touch; SAW; Infrared Touch options |
|
Dimensions |
|
|
Holes fixings |
rugged metal frame Vesa mounting 75x75 |
|
Mechanical dimensions |
230.5 x 181.5x 29.9 (mm) |
|
Drawings |
Please contact us for details |
Packaging & Delivery
|
Packing details |
1x 10.4 inch Touch Screen Digital Signage ; Packed in 5 pieces/carton with protection foam |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
