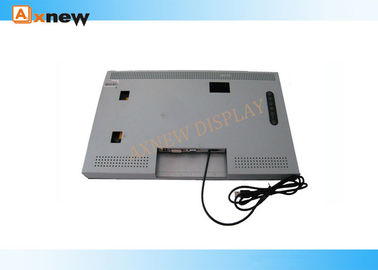

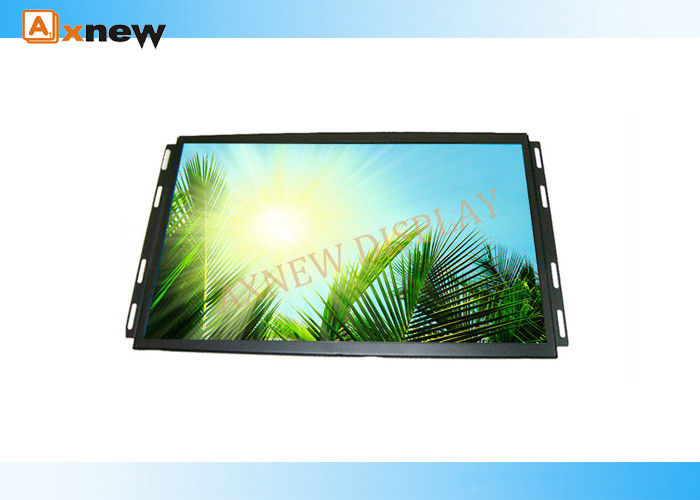

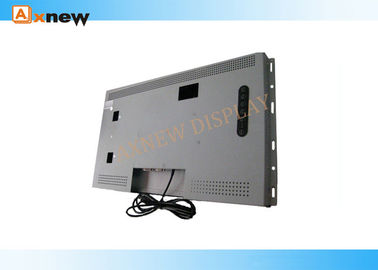

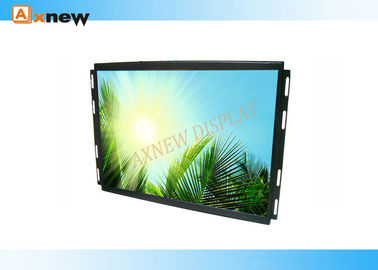

interactive digital signage display

Model: AXD-21OPN1P1-VH3

Screen Size:21.5’’

Screen format: 16:9

Display Resolution(pixel):1920X1080

Contrast Ratio:1000:1

Brightness: 1000cd/m^2

Storage temperature : 0℃~60℃

Input signal: VGA DVI

Power Input: AC100~240 V /DC 12V

Product status: In production

Features and Advantages

High brightness and wide viewing angle A grade perfect panels with stable supply

Slim and simple open frame to mount all the LCD kits in one , which is easily installed

3. industrial control board supports the displays working 24 hours

4. Professional and industrial hardware and parts to guarantee its working normally in rough environment

5. VGA DVI interfaces ;No touch screen, resistive touch or IR if needed

6. 21.5 inch ips open frame with 1000nits for application control , advertising player ,campus and industrial terminals etc

Display Specifications

Display

21.5" Open frame Monitor IPS

Model Name

AXD-21OPN1P1-VH3

Active Display Area (mm)

476.64 (H)x268.11(V)

Pixel Pitch (mm)

0.282(H)x0.282(V)

Resolution (Pixel)

WSXGA (1920X1080)

Brightness (CD/m^2)

1000cd/m^2

Contrast Ratio

1000:1

Viewing Angle (CR >=10)

89/89/89/89 super wide viewing angle

Power consumption

33.6 W typical, low consumption ,normal operation

Touch Screen

Resistive RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel metal housing

Dimensions

522.0x 294.6x 33.0(mm)

Mounting

Embedded ,fixing holes on the edging frame

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

0~60℃

Storage Temperature

0~60℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

21.5” 1000nits Open frame FHD IPS Technology with VGA input and power adapter

Packing details

1x 21.5 inch Touch Screen Digital Signage ;

Packed in 5 pieces/carton with protection foam
Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;  15 working days for order production
