China Signage Display Online Marketplace
High quality, Best service,Reasonable price. |
|
Product Details:
Payment & Shipping Terms:
|
| High Light: | interactive digital displays,digital advertising display |
||
|---|---|---|---|

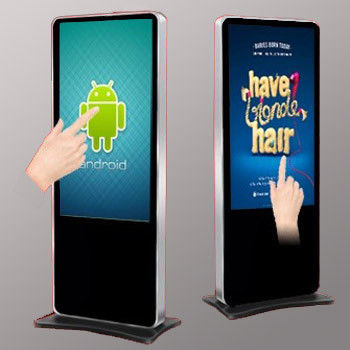

46 Inch interactive lcd digital signage
1. Direct factory price.
2. New brand A+ LCD Panel.
3. PC is embedded.
| PRODUCT | 46 Inch interactive lcd digital signage |
| GENERAL | Public Price; |
| High Quality; | |
| Simple and graceful design; | |
| Durable aluminum frame and tempered glass; | |
| Outstanding display with HD LCD panel; | |
| Three version options: single, network and interactive touch; | |
| LCD Size: 17", 19", 22", 26",32", 37", 42", 47", 52", 55", 65" | |
| KEY FEATURES | |
| High Resolution | 1920*1080 |
| Good Brightness | 500cd/mm2 , Contrast ratio : 2000:1 |
| Two Kinds of Controller | PC/Embedded Linux MPEG Player (ELP) |
| Material of Frame | Steel painted with powder burning |
| Front Tempered Glass | For protecting LCD panel against external impacts |
| Subject to Order | Built in ELP (Single Player), Built-in PC (Network & Touch Screen Player) |
| WARRANTY | LCD panel - 1year; |
| Controller(Built-in PC , Built-in ELP) - 1year; | |
| Other parts - 1year; | |
| Damages caused by human and error operation are excluded from the warranty; | |
| TECHNICAL SUPPORT | We provide 1% spare parts of card reader, power supply/adapter, remote control, key, ad board with the order; |
| Regardless of order quantity, we provide free technical traning for clients' personnel in Shenzhen, with clients bearing all related costs such as travel and accomodation incurred by their personnel; | |
| Technical traning and any kind of technical support in clients' appointed places is available as per clients' requirement, with clients reimbursing all associated expenses. | |
MANAGEMENT SOFTWARE (No 8-12 are for network version only ) |
1. Division up to 8 logical windows; |
| 2. Selecting the contents for each window (Image, Movie, PPT, SWF, TV, URL, Subtitle); | |
| 3. Making the date and time schedule for playing the contents; | |
| 4. Previewing all contents; | |
| 5. Supporting analog or digital TV signal input (option); | |
| 6. Supporting surveillance video signal input (real-time); | |
| 7. Supporting Language : English, Japanese, Chinese, Korean, etc. | |
| 8. Online playing of stream media such as web TV and web film; | |
| 9. With local storage, no failure caused by network disconnection; | |
| 10. Registration of more than one user; | |
| 11. Managing and monitoring terminal players remotely; | |
| 12. Remote Management: LAN and WAN (1:1; 1:N) | |
|
|
|
| INTERACTIVITY (Optional) |
User friendly touch interface; |
| Multi-point touch technology; | |
| Easy insertion of the ICON and the menu name | Easy change of the ICON and the menu name; | |
| Zoom in/out support : e-book, Image , Video; | |
| Other support : Map service, Bluetooth Service, Web Browsing, Various background color; | |
| Supporting device : RFID & Smart Card reader, Printer, Microphone, POS Device, Web camera, Motion sensor, Barcode reader & scanner, WiFi & GSM; |
|
| Remote management support : LAN and WAN (1:1 , 1:N ) | |
| BASIC OPTION | Frame Color: Black, white, green, pink, ivory, wine red, blue, violet |
| LCD Size: 17", 19", 22", 26", 32",37", 42", 46", 55", 65" | |
| Infrared Multi-Touch Screen | |
| Customer Logo | |
| Lead Time | 10-15 days after the order is confirmed. |
| TOUCH SCREEN SPECIFICATION | |
| Detection Method | Infrared touch |
| Screen Sizes | 17"-60" |
| Position accuracy | Approximately 3 mm absolute, 1 mm relative. No drift |
| Alignment | Software drivers provide a calibration facility |
| Sensitivity | Can be programmed for different thickness of glass and even use with gloved hands. |
| Standard configuration functions with non-metalized. | |
| single construction glass 16mm thick. Double glazing option up to 25mm available* | |
| Speed of response | Depends upon material thickness. Typically 50 to 100ms |
| Output | USB 2.0 |
| Software Compatibility | Drivers are available for Windows Operating Systems |
| Temperature range | Better than -10 to +70°C |
| Humidity Controller | 0% to 95%. Unaffected by condensation |
| EMC | EN55022:1998 + A1 + A2 EN55024:1998 + A1 + A2 |
| This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: | |
Bitmap
|
|
Bitmap
|
|
Bitmap
|
|
