Product Details:
Payment & Shipping Terms:
|
| Pixel Density(dots/sqm): | 3086 Dots/m2 | Pixel Pitch(mm): | P18 |
|---|---|---|---|
| Display Function: | Video | Pixel Configuration: | SMD 3535 |
| Screen Operation Mode(scan/static): | Static | Tube Chip Color: | Full Color |
| View Angle(degree)(50% Brightness): | V140/H140 | Pixel Composition: | 1R1G1B |
| High Light: | flexible led curtain screen,concert led screen |
||
Outdoor P18 Flexible Led Curtain Display Screen For Stage Backgound , IP65 3086 dots/m2
Quick Detail:
1) Super light and slim:6 ~ 9KG/ cabinet;
2) Pixel pitch from 6.25 to 20mm;
3) Easy lock system,no need any tools to install or uninstall;
4) Economic solution to install traditional indoor led display;
5) Mainly use for stage background;
Description:

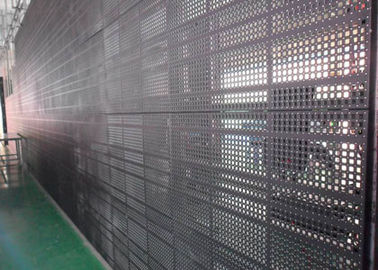

outdoor P18 led curtain wall
The design has the features of "light","thin", "fine", "penetrate ". Convenient installation, withstand wind and dustproof. Application for the stage and surrounding.
This product has been applicated at many fields such as stage, bar, entertainment TV and so on, it has been shown the unique artistic charm and aesthetic feeling of space imagination.
The brightness can be adjusted from 500 nits to 2000 nits without damaging the gray level, matching with calibration technology, it has the great expressive color.
The product is with convenient installation, and flight connectors connecting. Now it has become the most popular fashion elements at the digital stage and bar.
High refresh frequency can meet the requirement of the shooting on the stage, presents the perfect effect.

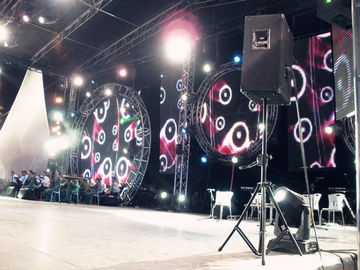

Applications Occasions:
Entertainment,stage,events,exhibitions,car shows, fashion shows, concerts, ceremonies, etc
Specifications:
outdoor P18 led curtain wall
| Pitch/mm | P12 | P16 | P18 |
| Density of pixel/(dots/m2) | 6944 | 3906 | 3086 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD 3535 | SMD 3535 | SMD 3535 |
| Driving method | 1/2 scan | static | static |
| View angle / ° | V140/H140 | V140/H140 | V140/H140 |
| Average power consumption/W/M2 | 350W | 420W | 350W |
| Max power consumption/W/M2 | 850W | 980W | 780W |
| Module size/mm | 288*288mm | 640*20mm | 720*12mm |
| Size of cabinet/mm | 576*576mm | 640*640mm | 720*720mm |
| Refresh rate Hz/S | ≥2000 | ≥2000 | ≥2000 |
| Luminance of white balance | ≥4500nits | ≥5000nits | ≥5000nits |
| Weight of cabinet | 11KG | 10.4KG | 12.5KG |
| Operation of Environmental Temperature/°C | -20 ~ 50 | ||
| IP rating | front:IP65 back:IP54 | ||
| Working vlotage | 110-220 VAC/+/- 10% ; 50~60HZ | ||
| Grey scale/color | displaying colors≥16.7M(synchronized) | ||
| Brightness adjustment |
256 levels of each color(manually), 100 levels of each color(automatically) |
||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||
| Control system | LINSN(sending card,receiving cards and Hubs);Nova | ||
| Average of non-failure life | >50,000 hours | ||
| Life span | >100,000hours | ||
| Functionaless dot rate | <0.0001 | ||
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
