Product Details:
Payment & Shipping Terms:
|
LED Type: | 1616 SMD | Material Of Frame: | Iron |
---|---|---|---|
Brightness: | 2000 Nits | Power: | MW 5V40A |
Lighting Source: | 1R1G1B | Display: | Video |
High Light: | led screen stage backdrop,led display screen |
Small Pixel LED Screens Indoor LED Advertising Display High Resolution HD Full Color
Product Description:
Ultra HD perfect picture quality, exclusive visual feast: High resolution brings delicate display effect, and it is a perfect embodiment of the new generation of ultra-highdefinition LED display technology. Pixel pitch is 1.9mm.
Advanced design with originality: Unique in the industry, it perfectly integrates the concepts of bionics, design aesthetics and ergonomics. Taking uni-led mascot little bee as the structural prototype, it is a perfect product with beautiful line.
Low brightness with high gray level, more delicate display performance: Adopt high-quality LED blackbody SMD lamp with black mask, the contrast ratio is up to 3000: 1, and the picture is clearer and vivider;
Easy realization of full HD and 4K big screen effect: Display screen can be spliced into any size and any direction, multi-standard video formats are available, easily realize Full HD and 4K video effect; screen performance is unique.
Installation or removal of the power supply box only needs 30s: Abandon the traditional design, fix the screws without using electric screwdriver or other tools. The fixed screws can be loosened through manual operation, installation or removal of the power supply box only needs 30s, fast and easy.
Product Specifications:
Item |
Specification Parameter |
Material,Cabinet Weight(kg/Cabinet) |
Iron ,6.5kg/Cabinet |
Resolution rate,size,Module quantity |
240*180Dots,457.44*343.08*81mm,3*2 |
Density |
275268 |
White balance ,Color temperature |
300CD,6500K-11000K |
view angel,Non-Flatness,Module interval |
H:140°;V:140°,≤0.3mm,≤0.3mm |
Maximal power,Average power |
720W,250W |
Working temperature,Protection grade |
-10℃ - +40℃,Front/Back:IP30/IP30 |
Frame frequency,Refresh frequency,Gray grade |
60Hz,2400Hz,14bit |
Product Features:
160° Large viewing angle: TOP-structured 1515 black lamp with optically trap lampshade to provide significant optical effect.
High contrast and high image quality: High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image.
Pixel-by-pixel calibration to ensure consistency: Industrially advanced spectral radiance meter CS-2000 which has luminance and chromaticity accuracy which are 30 times industrial level, and is used for calibrating the luminance and chromaticity of each LED lamp to achieve more than 99% highly unified consistency;
Micro inner arc design to provide broader viewing angle:Floor type support to be assembled by adjustment of different angle according to site requirement and supporting up to 10 degree inner arc.
* full HD : Each panel resolution is 320*180 so 6*6 panels can make 1920*1080 full HD(2K).Also, convenient cabinet design can make resolution bigger such as 4K or more.
* grey scale with low brightness : For small pixel LED display, the brightness should be very low for protection to people's eye. Captain Arena's display can still get good grey scale with low brightness.So there will be no problem if people stare at it long time.
* noiseless : Since small pixel LED screen are applied for high-level cases, so it must be noiseless. BAKO's 55'' LED display is designed without fans to make sure complete quietness.
* Flexible design for both front and rear service :There are both front and rear service for optional.Modules, power and cards can be take out from front or back. So wall mounted installation is possible for outdoor application and it can save quite a lot in steel structure. At the same time, the connection and waterproof is never affected by front service design.
* high refresh rate : High refresh rate is never failed to be mentioned for such cases. Our PCB, IC and control system are perfectly combined to achive satisfying effect. LED display can still show good effect viewed from camera.
* power/data redundancy : There is double protection for data/power transmission. Even if there is problem for data/power transmission, the whole LED screen can still work well.
* seamless connection: For small pitch LED display, if there is gap in connection, it may cause big problem especially in some special industries such as military. Our cabinet is designed with CNC technology and it can create completely seamless effect.
* moire remove: Moire effect is a headache for small pitch LED dislay. We make perfect combine in PCB design and IC design to remove moire. So the LED display can show image without any impurity.
Product Application:
It can be used in the wedding ceremony, night bar, party and all kinds of indoor environment. Many bars and pubs use high-brightness projectors for their big screens when an important sporting event is drawing in the crowds, the problem with these projectors is that they are directly affected by the ambient light of the room they are in. Captain Arena indoor LED screens work in an entirely different way, with the light coming from the screen itself rather than bounced off a projection screen. This means that no matter how bright the ambient light in a room, the picture from our Videowall LED screen will be bright and vibrant.

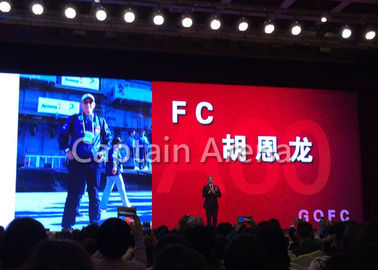

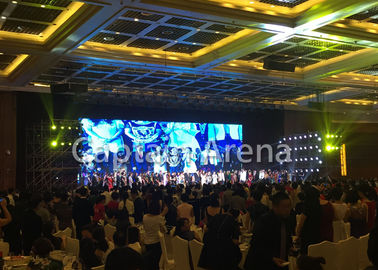

Reference Pictures:
