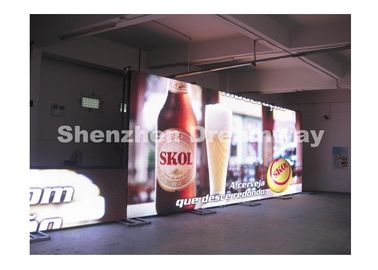

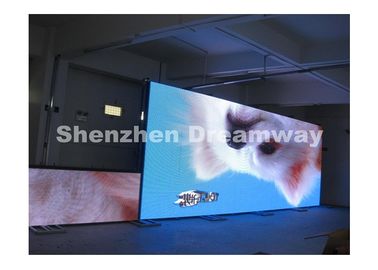

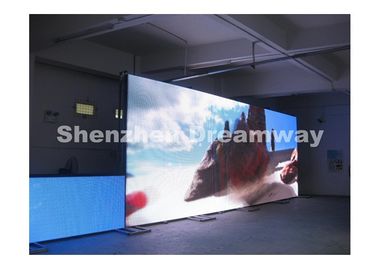

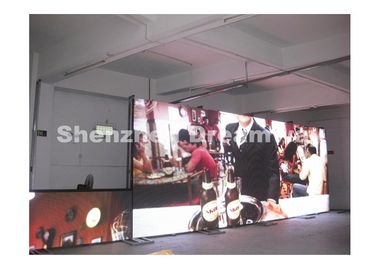

P7.62 1R1G1B Indoor LED Screen Rental with Video Processor and Flight Case

Large Image : P7.62 1R1G1B Indoor LED Screen Rental with Video Processor and Flight Case

Product Details:

Place of Origin:	China
Brand Name:	Dreamway
Certification:	CE,ROHS
Model Number:	P7.62

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	Flight case
Delivery Time:	20 days after receiving the deposit
Payment Terms:	T/T, Western Union
Supply Ability:	2000sq.m/Month

Contact Now

Detailed Product Description

Highlight:	waterproof led display

P7.62 1R1G1B Indoor LED Screen Rental with Video Processor and Flight Case

Quick Detail:

1. W 32 × H 16 LED module pixel;

2. W 244 × H 122 mm LED module size;

3. W 976 × H 976 × T 105 mm cabinet dimension;

4. About 30 kg/pc cabinet;

5. Hanging beam and hanging ring equipped;

6. VMS736 video processor used.

Detail Description:

Neat wiring;

There is VGA, COMPOSITE VIDEO, S-VIDEO, DVI, COMPONENT, HDMI input signals;

Flight case packed, easy transportation.

Application:

It is used for theatre advertising.

Specifications:

Pixel Pitch	7.62 mm
LED Composition	1R1G1B
LED Encapsulation	SMD3528
Resolution	17,222 dots/sq.m
Module Pixel	W 32 × H 16
Module Size	W 244 × H 122 mm
Cabinet Size	W 976 × H 976 mm
Cabinet Material	Aluminum cabinet with locks
Drive Mode	1/8 scan constant current
Brightness	Over 1,200 nits/sq.m
Refresh Rate	More than 1200Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Span	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Warranty	2 years
Control Method	Synchronization control with video processor
Input Signal	DVI, COMPOSITE VIDEO, S-VIDEO, HDMI
