576mm x 576 mm P 6 LED Full Color Display LED Box with 1/8 Scan EPISTAR LED

Large Image : 576mm x 576 mm P 6 LED Full Color Display LED Box with 1/8 Scan EPISTAR LED

Product Details:

Place of Origin:	China
Brand Name:	Dreamway
Certification:	CE,ROHS
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	Flight case
Delivery Time:	20 days after receiving the deposit
Payment Terms:	T/T, Western Union
Supply Ability:	2000sq.m/Month

Contact Now

Detailed Product Description

Highlight:	led full color display

576mm x 576 mm P 6 LED Full Color Display LED Box with 1/8 Scan EPISTAR LED

Quick Detail:

1. 32 × 16 dots per LED display module;

2. 192 × 96 mm module size;

3. 576 × 576 mm aluminum cabinet;

4. 3 × 6 pcs modules per cabinet;

5. 1/8 scan constant current;

6. More than 3,000 nits/sq.m.

Detail Description:

Each LED box is composed with 3 by 6 pcs LED modules, with 576 by 576 mm;

This type of P6 is with high brightness, more than 3,000 nits, 1/8 scan;

Flight case would be used for convenient transportation.

Application:

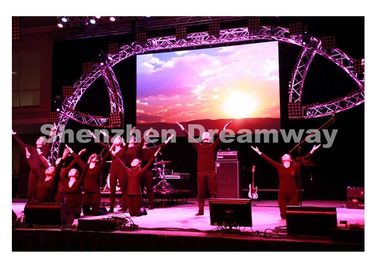

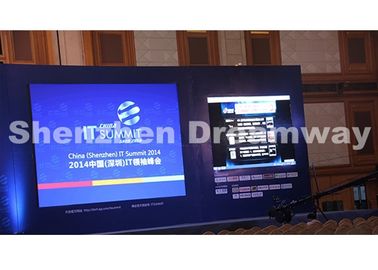

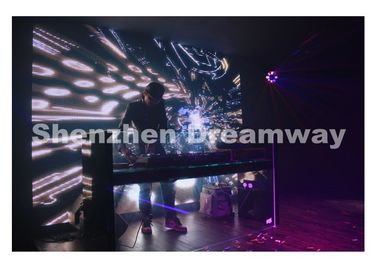

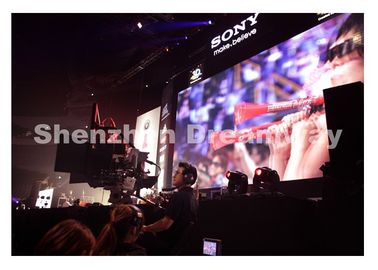

Such rental LED display screen is controlled with video processor for broadcast, live show, with high resolution and good display effect.

Specifications:

Model	P 6
LED Composition	1R1G1B
LED Type	SMD3528
LED Chip	EPISTAR
Module Pixel	W 32 × H 16
Module Size	W 192 × H 96 mm
Cabinet Dimension	W 576 × H 576 × D 70 mm
Cabinet Material	Brushed aluminum
Driving Mode	1/8 scan constant current
Luminance	≥3000 nits/sq.m
Refresh Rate	≥1200Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Time	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Video Processor	VMS736
Operation Software	NovaStudio
Warranty	2 years
