Highlight: | waterproof led display |
---|
27777 dots PH6 Indoor LED Screen Rental 576mm x 576 mm LED Cabinet
Quick Detail:
1. SMD3528 LED type;
2. EPISTAR LED chip;
3. 1R 1G 1B LED composition;
4. 32 × 16 dots per LED module;
5. 3 × 6 pcs modules per cabinet;
6. NOVASTAR controller.
Detail Description:
The cabinet is die-casting aluminum, good-looking apperance, nice ventilation, light weight;
The controller is NOVASTAR, with high resolution, could be more than 1200 HZ;
Video processor equipped to provide various input signals, like DVI, VGA, HDMI, C-VIDEO, etc.
Application:

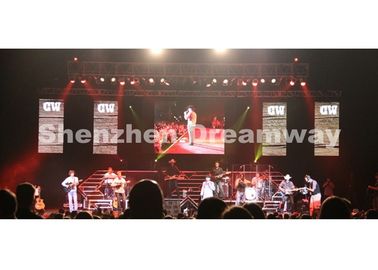

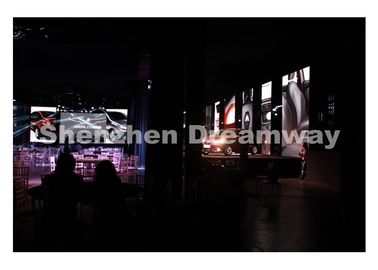

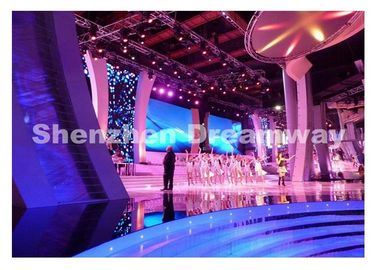

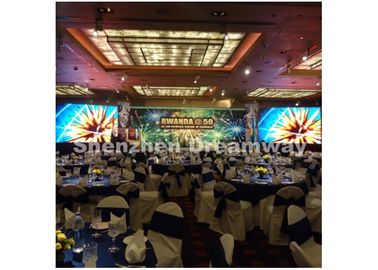

Indoor rental LED screen is to play advertising on shows, concert, and so on.
Specifications:
Type | PH 6 |
LED Composition | 1R1G1B |
LED Type | SMD3528 |
LED Module Quantity (per cabinet) | W 3 × H 6 = 18 pcs |
LED Module Pixel | W 32 × H 16 |
LED Module Size | W 192 × H 96 mm |
Cabinet Size | W 576 × H 576 × D 90 mm |
Cabinet Material | Die-casting aluminum |
Driving Mode | 1/8 scan constant current |
Brightness | ≥3000 nits/sq.m |
Refresh Rate | ≥1200Hz |
Out of Control Dot Rate | <0.0001 |
Earth Leakage Current | <2mA |
MTBF | >5,000 hours |
LED Life Time | >100,000 hours |
Power Supply | 110V/60HZ and 220V/50HZ interchangeable |
Brand | G-energy |
Input Signal | DVI, HDMI, VGA, CV, S-VIDEO |
Software | Novastudio |
