Name: Steel Indoor 220V / 50HZ LED Screen Rental PH 6 768 x 576 mm
Brand: China Signage Display Online Marketplace
SKU: P6
Availability: InStock

About Us

company profile Factory Tour Quality Control

Our Products

Home

Steel Indoor 220V / 50HZ LED Screen Rental PH 6 768 x 576 mm

Large Image : Steel Indoor 220V / 50HZ LED Screen Rental PH 6 768 x 576 mm

Product Details:

Place of Origin:	China
Brand Name:	Dreamway
Certification:	CE,ROHS
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	negotiable
Price:	negotiable
Packaging Details:	Flight case
Delivery Time:	20 days after receiving the deposit
Payment Terms:	T/T, Western Union
Supply Ability:	2000sq.m/Month

Contact Now

Detailed Product Description

Pixel Pitch:	6 Mm	LED Module:	192 × 192 Mm
Module Pixel:	32 × 32	Cabinet Size:	768 × 576 Mm
Resolution Per Cabinet:	128 × 96	Weight:	13.5 Kg/pc
Package:	Flight Case	Type:	Hanging
Highlight:	waterproof led display

Steel Indoor 220V / 50HZ LED Screen Rental PH 6 768 x 576 mm

Quick Detail:

1. 36 pcs cabinets in total;
2. 4 × 3 = 12 pcs LED modules per cabinet;
3. 3% spare parts offered;
4. LINSN controller;
5. Video processor equipped;
6. Flight case package.

Detail Description:

Each cabinet is composed with 4 by 3 LED modules, 768 by 576 mm, 128 by 96 pixels;
We offer 3% spare parts of LED modules, controller, power supply for all projects;
Chuanglian brand super-thin power supply and LINKO power connector used.

Application:

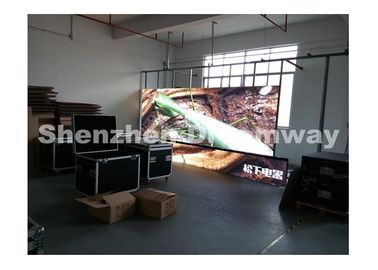

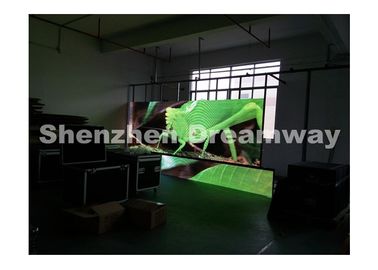

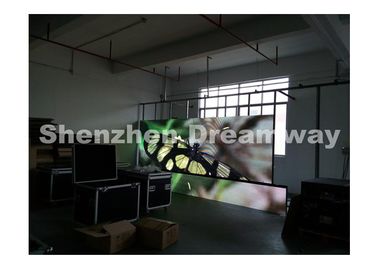

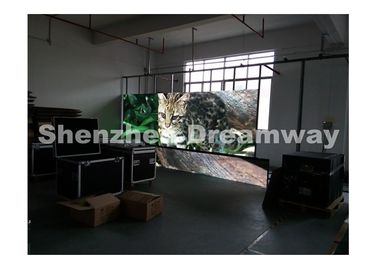

This indoor LED screen rental would be installed in Oman for rental use, like show, exhibition.

Specifications:

Pixel Pitch	6 mm
LED Composition	1R1G1B
Screen Size	W 5376 × H 2880 mm
LED Module Quantity	W 28 × H 15 = 420 pcs
LED Module Pixel	W 32 × H 32
LED Module Size	W 192 × H 192 mm
Cabinet Size	W 768 × H 576 × D 95 mm
Material	Steel rental cabinet with lock and handle
Drive Mode	1/16 scan constant current
Brightness	≥1400 nits/sq.m
Refresh Rate	≥1200Hz
Out of Control Dot Rate	＜0.0001
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
LED Life Time	＞100,000 hours
Power Supply	220V / 50HZ
Brand	Chuanglian
Control Card	LINSN
Warranty	2 years
