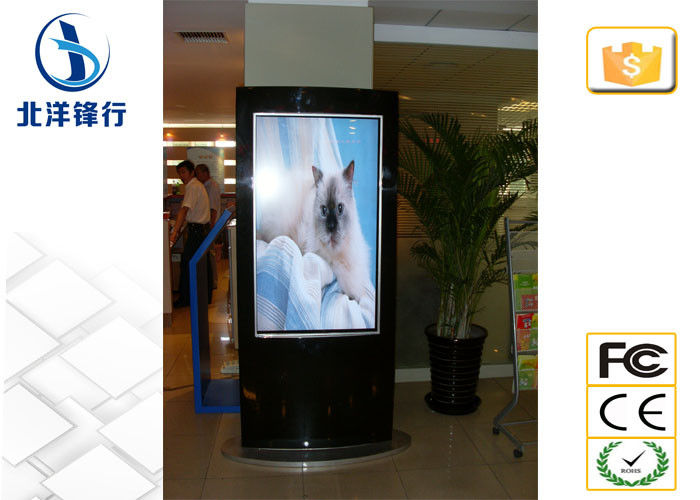

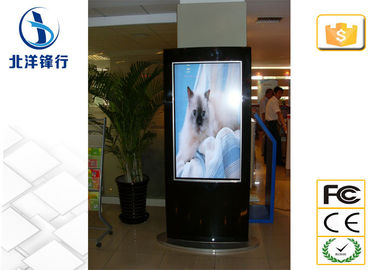

Large Image :  Vertical Advertising Digital Signage Kiosk Wayfinding / Trade Show Kiosks

Product Details:
Place of Origin: BYFX, Beijing, China
Brand Name: BYFX
Certification: CE/ROHS/FCC/SGS
Model Number: BYDS-1555
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: Western Union, MoneyGram
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Digital Signage Kiosk Screen Ratio: 16:9
OS: Windows XP ,7,8 Or Android Installation: Floor-standing
Life Hour: 50,000hrs Input Voltage: AC100~240V 50 /60 HZ
High Light:

led digital signage displays

,

floor standing digital signage

Modular Interactive Digital Signage Kiosk / Vertical Touch Screen Kiosk for Any Environment



Specification:

Size: 42inch, 46inch, 55inch

Model: BYDS-1555

Model

BYDS-1555

Display Specification

Display

LED Display

Ratio

16:9

Display Size

46-inch

Resolution

1920x1080

Color

16.7M

Dot Matrix

0.51075(H)×0.51075(V)

Brightness

450cd/m²

Contrast

3000:1

Viewing Angle

±178°

Reaction Time

5ms

Built-in Computer
Specifications

CPU Processing

Intel Core 1037U, clocked at 1.8GHz
Dual-core, four threads,
Thermal Design Power (TDP): 17W
Intelligent L3 cache: 2MB, production process:
22nm

RAM Memory

Kingston 2G

Chipset

Intel NM70 Express Chipset

Hard disk (SSD / HD)

500G hard drive

Graphics

Integrated Intel ® HD2000 series graphics
core

Sound

Integrated Realtek ALC662 6-channel HD
Audio controller supports MIC Line-out

Network Interface

1 * RTL8111E Gigabit LAN chip, supports
Wake on LAN feature

Wireless Module

Optional

External Interface

USB2.0*4  HDMI1 VGA LAN Line-out MIC DC-12V

OS

Windows XP, Windows Vista, Windows 7,
Windows 8

Machine

Cabinet Material

Cabinet made of metal material, the outer
surface of imported metal paint, anti-magnetic, anti-static

Power Supply

Maximum power consumption 380W, power instantaneous
current 5A. Voltage (AC220V)

Sound

Dual-channel, stereo surround amplifier
system, the output power
2 × 40W

Operating Temperature
 / Humidity

0℃~40℃/20~80%

Storage Temperature
 / Humidity

-20℃~ +60℃/10~90%

Warranty

One year

Machine Size

1850*710*70mm




Description:
BYFX Digital Signage kiosk can accommodate virtually any single or multi-touch LCD monitor with the option to orient the display to portrait or landscape mode. Because its capacity to accommodate larger monitors, it allows dual use of the monitor through the ability to split the screen for applications such as retail and way-finding. Performance on a pedestal; the Milan can be configured with peripherals including; thermal printers, a media player device, magnetic and smart card readers, proximity sensors and QR/barcode scanners.


Optional:

  • 32”, 42” or 55” LCD
  • Single or Multi-Touch Technology
  • Durable Powder Coat Paint Finish

Applications:

  • Retail
  • Wayfinding
  • Interactive Digital Signage
  • Advertising
  • Product Demonstrations
  • Information
  • Casino
  • Trade Shows

Competitive Advantage:

  • OEM/ODM kiosk design according to customers' requirement
  • High quality & reasonable touch screen kiosk price
  • Life-time after-sell service from professional sales and engineers team

Digital Signage KIosk
Vertical Advertising Digital Signage Kiosk Wayfinding / Trade Show Kiosks 0
