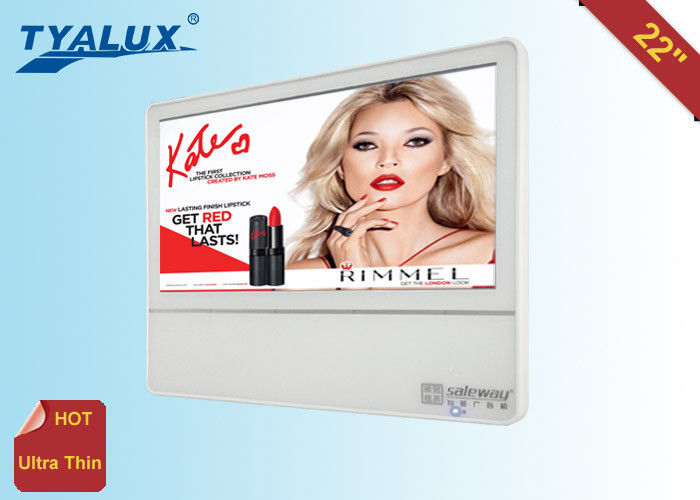

Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen

Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen

Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen
Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen

Large Image :  Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen

Product Details:
Place of Origin: China
Brand Name: Tyalux
Certification: CE/ROHS/FCC/ISO9001:2008
Model Number: TYL-HGM22BN04-Z
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Three choices:carton box, wooden box or flight case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Wall Mounted Digital Signage Panel: 22 Inch LG Panel
RAM: 1G Internal Memory: NAND FLASH 4G
Picture Format: BMP, JPEG, PNG, GIF Safty: Safty Lock Design
Network: Ethernet, Wifi, 3G Is Optional
Highlight:

Wall Mount Kiosk



Android LED LG Panel Wall Mounted Digital Signage with 22 inch LCD Screen



Description:



1: it is built-in media player, it support inserting USB or SD card to auto loop play video and picture in the card. It support preset time to pay.

2:  It is built-in Android OS, it support installing Remote Management Advertising software to update advertising content via Internet

3: it is a monitor with some input interface like HDMI, AV, VGA to connect external device like computer, media player


Specifications:

Specification for Panel

Specification for Android main board

Screen size

22" TFT LCD Panel

CPU

1.0 - 1.5GHz

Touch screen

Optional

Infrared remote control

support

Max.Resolution

1920*1080

RAM

1G

Viewing angle

178°/178°

Internal Memory

NAND FLASH 4G

Color

16.7M

External Memory

SATA/USB/SD card/CF card

Brightbess

250cd/m2

resolution

1920*1080

Contrast ratio

1000:1

Operating system

Android 4.2.0

Response time

5ms

Play mode

Circulation, timing, inter-cutting etc.

Viewable area

575.7(H)×323.7(V)mm

Network

Ethernet, wifi, 3G is optional

Working power

AC100-240V  50/60Hz

Video format

wmv, avi, flv, rm, rmvb, mpeg,
ts, mp4 etc.

Speaker power consumption

10W

Picture format

BMP, JPEG, PNG, GIF

Max power consumption

30W

Networking protocol

TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP

Standby power consumption

0.3W

USB2.0 port

2X USB HOST  external mouse
 and keyboard

Working humidity

10%-90%(Without dew )

Ethernet

1X RJ45, 10M/100M optional

Working temperature

0℃-40℃

LVDS / output

1

Storage temperature

-20℃-60℃

HDMI output

1

Remarks

AV output

CVBS AV output and left and
 right channel output

Installtion type

Wall mounted

VGA output

1

Design

Ultrathin

Real time clock

Yes

comes with accessory

User Manual  *1

Timing switch

Yes

Remote control *1

System upgrade

USB upgrade and network
 upgrade supported

CD  *1

Safty

Safty lock design

Wall mounted
installation kits

Working temperature

0℃-40℃

Pane Demensions


532(L)*460(H)*30(D)mm

Storage temperature

-20℃-60℃





Applications:


1. Bank
2. Telecom (Service hall)
3. Government Facilities & Community
4. Shopping Center(Map, Enquiry, Promotion)
5. Flagship Store
6. 4S Motor Chain Stores
7. Furniture and Artwork Boutique
8. Cinema

Why choose Weiguan Views:

1: Safety of batch production, strict inspection

2: We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns long use life and good visual effect.

3: Three years warranty

4: Experienced R&D Department
