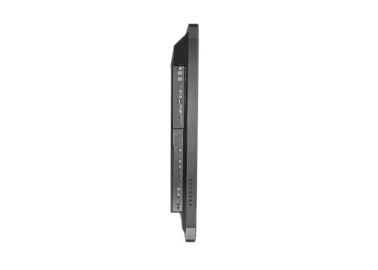

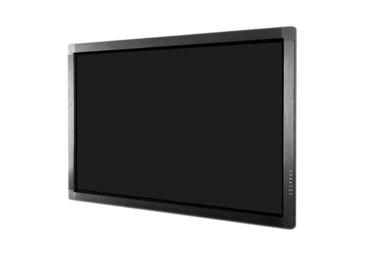

Electronic 55 inch All In One Computer , All in one Digital Signage

Large Image : Electronic 55 inch All In One Computer , All in one Digital Signage

Product Details:

Place of Origin:	China
Brand Name:	Tmtouch
Certification:	CE, FCC, Class B, RoHS
Model Number:	TVI55H

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiate
Packaging Details:	PE protective film+PE foam+honeycomb box+wooden case
Delivery Time:	12-15days
Payment Terms:	L/C, T/T
Supply Ability:	2000set per month

Contact Now

Detailed Product Description

Size:	55 Inch	Available Size:	55" 65" 70" 84" 98"
Touch Technology:	Multi-point IR Touch Screen	Outline Dimension:	1296X730X81mm
Carton Dimension:	1425x210x950mm	N.W./ G.W.:	40KG/70KG
Highlight:	all in one touchscreen computer

Electronic 55 inch All In One Computer , All in one Digital Signage

Product Features

1. Apply touch/TV integrated front shell design, brushed aluminum surface treatment.

2. Whole machine process lower heat and dustproof treatment, e.g. Concave cooling zone prevent dust.

3. Apply special industrial computer module, lowest maintenance cost.

4. Don’ t need to remove touch screen for maintenance and update future LED panel.

3. Support 2/4/6/8/10/16/32/40 touch point simultaneously under Windows/Linux/Mac/Android.

5. Energy conservation and more environmentally friendly. Built-in the USB interface on the top,

easy to use an external camera.

6. Lower power consumption, e.g. Standby power is lower than 0.5W under Windows8.

7. Multi-touch writing and gesture recognition. user-defined gesture. Support multi-language.

Technical Specification

Display Parameter	Panel size	55inch(diagonal line)
	Effective display area	1209.6mm(W) x 680.4mm (H)
	Display ratio	16:9
	Brightness	400cd/㎡(central point,model)
	Contrast ratio	4000:1
	Blacklight type	LED
	Visual Angle	178°(V)/178°(H) (Typical)
	Resolution	1920(H) X 1080(V)
	Video Standard	PAL/SECAM
	Audio output power	2X10W
Touch Screen	Touch technology	Multiple infrared scanning technology
	Touch point	1/2/4/6/10/16/32/40point
	Touch embedding methods	prepostion embedded(front maintainance)
	Touch and drive mothed	HID free drive
	Material of writing surface	4MM tempered glass(anti-glare is optional)
	Resolution	4096X4096
	Interface	USB 2.0
	Sampling Rate	≥120Hz
	Response speed	click:8ms continue:3ms
	Positioning accuracy	≤±2mm
	Touch times	more than 60 million times at the same place
	power supply mode	USB 5.0V
	OS Support	Windows,Linux,Android,MAC
	Measuring ability	support software detection can test equipment

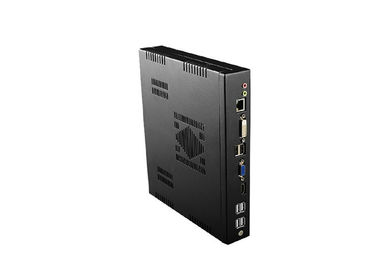

Built-in PC	Built-in PC	OPS Industry Module
	Mainboard	OPS860
	OPS function	CPU:G2010,i3,i5,i7
	Memory	2G/4G
	Hard disk	500G
	Operating system	Windows7
	Graphics card	integration
	Audio card	integration
	Wireless keyboard/mouse	optional
	Interface	HDMI,USB,VGA,audio,RJ-45 internet interface
Other	Overall power consumption	≤160W
	Standby power consumption	≤0.5W
	Lifetime	50000hours
	Power requirement	100-240V, 50/60Hz
	Hanging bracket	include
	Floor stand	optional
	Outline Dimension	1296X730X81mm
	Net weight	40kg
	Carton Dimension	1425x210x950mm
	Gross weight	70Kg

Software Functions

Software Agreement:using hardware associated with the licensing model,The built-in touch

screen supports driverless function, meeting customer’s need at any time (mouse model

of factory setting). Annotation mode and full-screen mode.

1. Multilingual text prompt functions, support icon, also can close the text prompt functions.
2. Supports multi-hard brush, brush, highlighter, row pen, smart pen, variety of textures pen to write,

users can choose pen type, color, thickness at the same interface and other functions.
3. Support large object recognition as an eraser function
4.Support big medium and small three kinds of erasers, and support regional and full screen clearance.
5.Supports a variety of graphics rendering function, support set the border line style and color at the

same interface, fill color and other features.
6.Support resource library functions are available via the network, local resources transfer text, images,

audio, video, supports auto-generated resource function.
7.Supports a variety of file import and export functions,Can modify after introduction PPT
8.Support page preview function, you can add, delete,copy pages directly and other functions.
9.Support a variety of teaching aids tools,such as screen cover, searchlight, recording function,

camera function, measuring function, handwriting recognition feature.
10.Support transparent page annotation function under the annotation mode.
