Product Details:
Payment & Shipping Terms:
|
| Size: | 55 Inch A Grade LED Panel | Available Size: | 55" 65" 70" 84" |
|---|---|---|---|
| Effective Display Area: | 1209.6mm(W) X 680.4mm (H) | Display Ratio: | 16:9 |
| Brightness: | 400cd/㎡(central Point、model） | Contrast Ratio: | 4000:1 |
| Viewing Angle: | 178°(V)/178°(H) （Typical） | Resolution: | 1920（H) X 1080(V) |

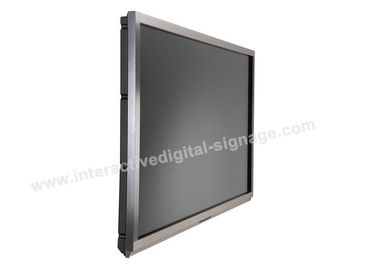

Multi-point Interactive Electronic White Board, 55 inch All-in-one Computer for Education
Product Features
1. Apply touch/TV integrated front shell design, brushed aluminum surface treatment.
2. Whole machine process lower heat and dustproof treatment, e.g. Concave cooling zone prevent dust.
3. Apply special industrial computer module, lowest maintenance cost.
4. Don’ t need to remove touch screen for maintenance and update future LED panel.
3. Support 2/4/6/8/10/16/32/40 touch point simultaneously under Windows/Linux/Mac/Android.
5. Energy conservation and more environmentally friendly. Built-in the USB interface on the top,
easy to use an external camera.
6. Lower power consumption, e.g. Standby power is lower than 0.5W under Windows8.
7. Multi-touch writing and gesture recognition. user-defined gesture. Support multi-language.
Technical Specification
| Touch Screen | Touch technology | Multiple infrared scanning technology |
| Touch point | 1/2/4/6/10/16/32/40point | |
| Touch embedding methods | prepostion embedded(front maintainance) | |
| Touch and drive mothed | HID free drive | |
| Material of writing surface | 4MM tempered glass(anti-glare is optional) | |
| Resolution | 4096X4096 | |
| Interface | USB 2.0 | |
| Sampling Rate | ≥120Hz | |
| Response speed | click:8ms continue:3ms | |
| Positioning accuracy | ≤±2mm | |
| Touch times | more than 60 million times at the same place | |
| power supply mode | USB 5.0V | |
| OS Support | Windows,Linux,Android,MAC | |
| Measuring ability | support software detection can test equipment | |
| Built-in PC | Built-in PC | OPS Industry Module |
| Mainboard | OPS860 | |
| OPS function | CPU:G2010,i3,i5,i7 | |
| Memory | 2G/4G | |
| Hard disk | 500G | |
| Operating system | Windows7 | |
| Graphics card | integration | |
| Audio card | integration | |
| Wireless keyboard/mouse | optional | |
| Interface | HDMI,USB,VGA,audio,RJ-45 internet interface | |
| Other | Overall power consumption | ≤160W |
| Standby power consumption | ≤0.5W | |
| Lifetime | 50000hours | |
| Power requirement | 100-240V, 50/60Hz | |
| Hanging bracket | include | |
| Floor stand | optional | |
| Outline Dimension | 1626X979X112mm | |
| Net weight | 60kg | |
| Carton Dimension | 1850X1230X290mm | |
| Gross weight | 87Kg |
Software Functions
Software Agreement:using hardware associated with the licensing model,The built-in touch
screen supports driverless function, meeting customer’s need at any time (mouse model
of factory setting). Annotation mode and full-screen mode.
1. Multilingual text prompt functions, support icon, also can close the text prompt functions.
2. Supports multi-hard brush, brush, highlighter, row pen, smart pen, variety of textures pen to write,
users can choose pen type, color, thickness at the same interface and other functions.
3. Support large object recognition as an eraser function
4.Support big medium and small three kinds of erasers, and support regional and full screen clearance.
5.Supports a variety of graphics rendering function, support set the border line style and color at the
same interface, fill color and other features.
6.Support resource library functions are available via the network, local resources transfer text, images,
audio, video, supports auto-generated resource function.
7.Supports a variety of file import and export functions,Can modify after introduction PPT
8.Support page preview function, you can add, delete,copy pages directly and other functions.
9.Support a variety of teaching aids tools,such as screen cover, searchlight, recording function,
camera function, measuring function, handwriting recognition feature.
10.Support transparent page annotation function under the annotation mode.
