China Signage Display Online Marketplace
High quality, Best service,Reasonable price. |
|
Product Details:
Payment & Shipping Terms:
|
| Input Power: | AC100-240V, 50/60HZ | OSD: | Multi-language, Chinese, English, Japanese, French, Spanish, Etc. |
|---|---|---|---|
| Mode: | Landscape / Vertical Screen, Optional | OS: | Android / Windows / Linux |
| OTG: | Support Copy, Delete, Remove, Rename, Build New File Among Different Cards | Color: | Multi Color Are Available |
| Material: | High Grade Metal Frame, Temperate Glass Panel | Network: | 3G, WIFI, LAN, WAN |
| Panel Size: | 32", 42", 55" | ||
| High Light: | lcd advertising display,3g digital signage |
||

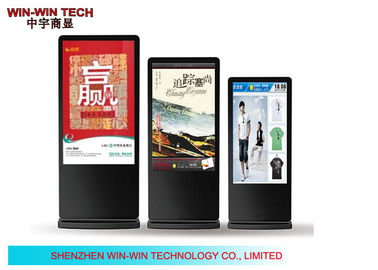

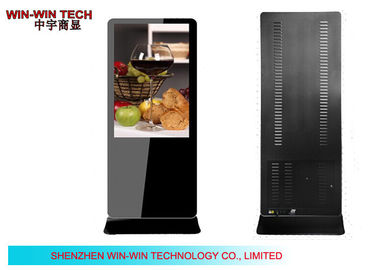

Odin Free Standing Samsung Wireless Digital Signage Kiosk Windows 8 / 7
Specifications:
|
Technical Parameter for 22Inch LCD Panel |
Panel Size |
32 Inch TFT LCD |
||
|
Aspect Ratio |
16:9 |
|||
|
Active Area |
853.92*480.33mm |
|||
|
Visual angle |
V:178° , H:178° |
|||
|
Max. Resolution |
1920 x 1080 |
|||
|
Dot Pitch |
0.484*0.484mm |
|||
|
Number of Color |
16.7M |
|||
|
Brightness |
500cd/m2 |
|||
|
Contrast Ratio |
3000:1 |
|||
|
Responsive Time |
6ms |
|||
|
Panel Life |
above 60000 hours |
|||
|
Touch Panel |
Touch technology |
Two point, multi points touch |
||
|
Light transmittance |
100% |
|||
|
Physical resolution |
1000x1000 |
|||
|
Touch media |
Finger/touch pen opaque objects |
|||
|
Response time |
≤10ms |
|||
|
Click life time |
≥60 M times |
|||
|
power |
1W |
|||
|
Max current |
<350 MA |
|||
|
Storage Medium |
Flash memory card, SD Card |
2gb to 36gb for the capacity |
||
|
Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
||
|
Audio formats |
MP3 |
|||
|
Photo formats |
JPEG/BMP/TIFF/PNG/GIF |
|||
|
OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
|||
|
Audio output |
stereo L/R, 5W*2, 8Ω |
|||
|
Power supply |
AC 110V - 240V, 50/60HZ |
|||
|
Storage Temperature |
-7 to 65 Celsius degree |
|||
|
Normal Working Temperature |
-5 to 65 Celsius degree |
|||
| Warranty | 1 year | |||
| Maximum power consumption | 220W | |||
|
PC Specification
|
CPU |
Intel G2020/2.9GHZ/ Dual core |
|
RAM |
DDR3.2GB |
|
|
HDD |
S-Atall 500GB/16MB/5400rpm |
|
|
Graphics |
Inter NM10Express |
|
|
Chipset |
INTEL 5400 |
|
|
Ports |
5xUSB, 1xVGA, 1XLAN, 1XAUDIO-OUT, 1XMIC-IN, DVI, HDMI |
|
|
Power consumption |
30W |
|
|
Operating system |
Windows 8 / 7 |
|
|
Speaker |
2*10W |
Description:
WIN-WIN TECH LCD Digital Signage display including all the sizes, different type, OEM function and out looking.
All the sizes: 7" - 70"
Application: indoor, outdoor
Installation way: wall mount, roof fixing, floor standing.
Software: optional, can customized.
Version: stand alone or network (3g, wifi, lan, wan, optional)
function request: can be customized.
Housing: can be customized
1. With lockable door to avoid take away flash memory card and advertising playing program.
2. Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.
3. Brands of LCD screen for Samsung, LG, Chime, HSD, AU, Toshiba etc, A Class 335 standard, full
new and factory original packing screen.
4. Built-in superior quality stereo speakers,5W *2.
5. Support Rolling text. The captions can be showed on the screen by easily put a TXT file into the CF/SD card within the rolling contents.
6. The products pass the national mandatory 3 c authentication, and has the national high and new
technology enterprise development of the software copyright certificate.
7. high-definition visible effect, universal decoding chip, support 1080 p, this feature is supported by the video is very comprehensive, with high compatibility.
8. Support Screen Split function;Support horizontal/vertical screen play;Play the picture pattern can have a middle to both sides, left to right,Top to bottom variety of patterns.
Application:
1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,
large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;
4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,
5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
7. Entertainments: Movie theaters, fitness halls
Our competitive advantage:
1. Low MOQ, our MOQ is 1 pc.
2. Good after sales, our engineer is 12hrs/day on line to help you if you meet any problem, we will track the entire
transport process and report to you timely, till receive all the products which you purchased from our
company.
3. Short delivery time. 1-5 working days for sample, 15-20 days or bulk order.
